Designed to divert material directly into a hopper

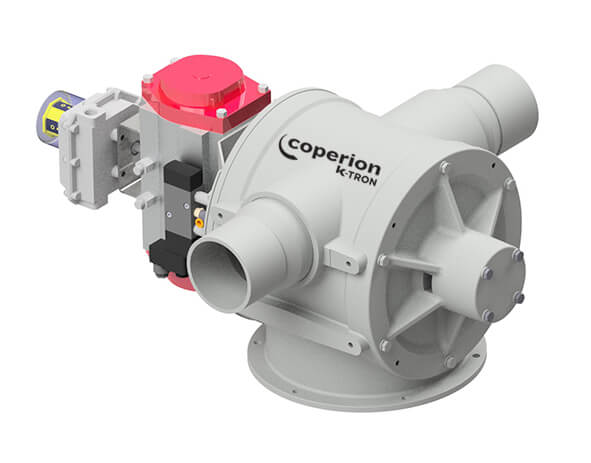

Coperion K-Tron's Aeropass Valves may be mounted directly on top of a Scale Hopper, simplifying system design and requiring a lower initial investment. Aeropass Valves are designed to divert material directly into a hopper. The valve's height enables its use in low-clearance areas. With its immediate shutoff of material when the Scale Hopper is full, the Aeropass Valve is ideally suited for scaling applications.

MAIN FEATURES

  • Available for 2", 3", 4", and 5" O. D. tube and pipe line sizes
  • Proof switches for both gate positions
  • Pre-wired electrical enclosure with air actuator and limit switches, preset and tested
  • Enclosure ratings of IP56, NEMA 4X and NEMA 9 are standard, with NEMA 7 optional
  • Eliminates need for branch entry lines by mounting directly on top of bin or scale hopper

Related Industries

  • Plastics
  • Chemicals
  • Food & Pet Food
  • Minerals

Benefits

  • Easy to maintain, and are efficient in pressure and vacuum applications.
  • Since the valve is mounted on top of a bin or scale hopper, material can be directed to any number of destinations that have an Aeropass Valve, without the need for branch entry lines
  • The material and air are directed into the hopper, where a scroll cyclonically separates them.
