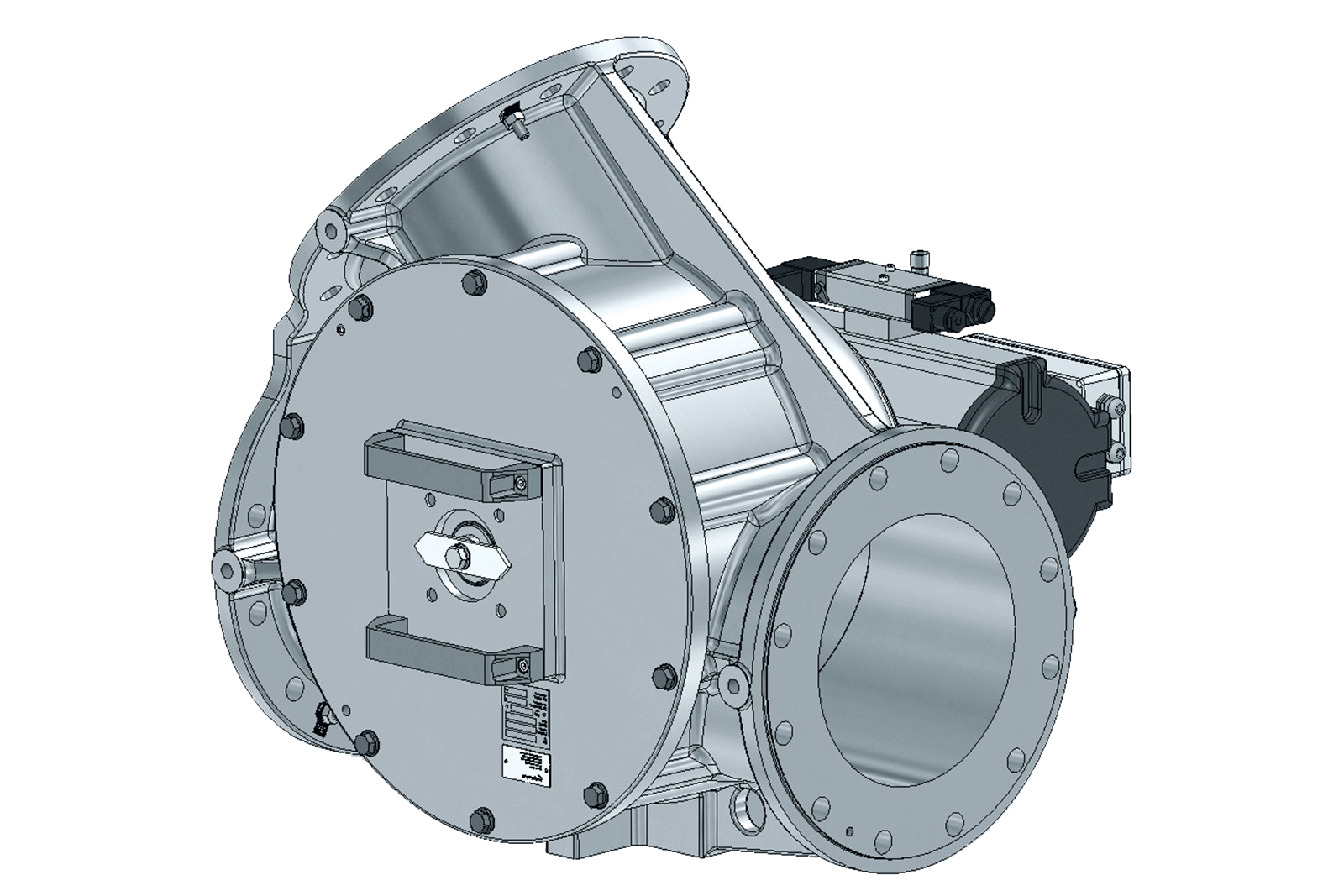

Single Channel Diverter Valve for Granular Products

  • In compact spherical design with 45° outlet
  • Space-saving installation in pneumatic conveying lines or in gravity pipes at up to 6 barg

MAIN FEATURES

  • Pressure Range
    6 barg (87 psi) sysem and differential pressure
  • Pressure Surge Proof (Optional)
    10 barg (145 psi) due to heavy duty design
  • Operation Temperature
    -20°C up to 100°C
  • Application
    Suitable for fluid group 2 according PED (fluid group 1 on demand)
  • Seal configuration
    Seal free, tight clearance between rotor and housing
  • Material of Construction
    Cast aluminium, product wetted parts hard coated

Related Industries

  • Plastics
  • Food & Pet Food
