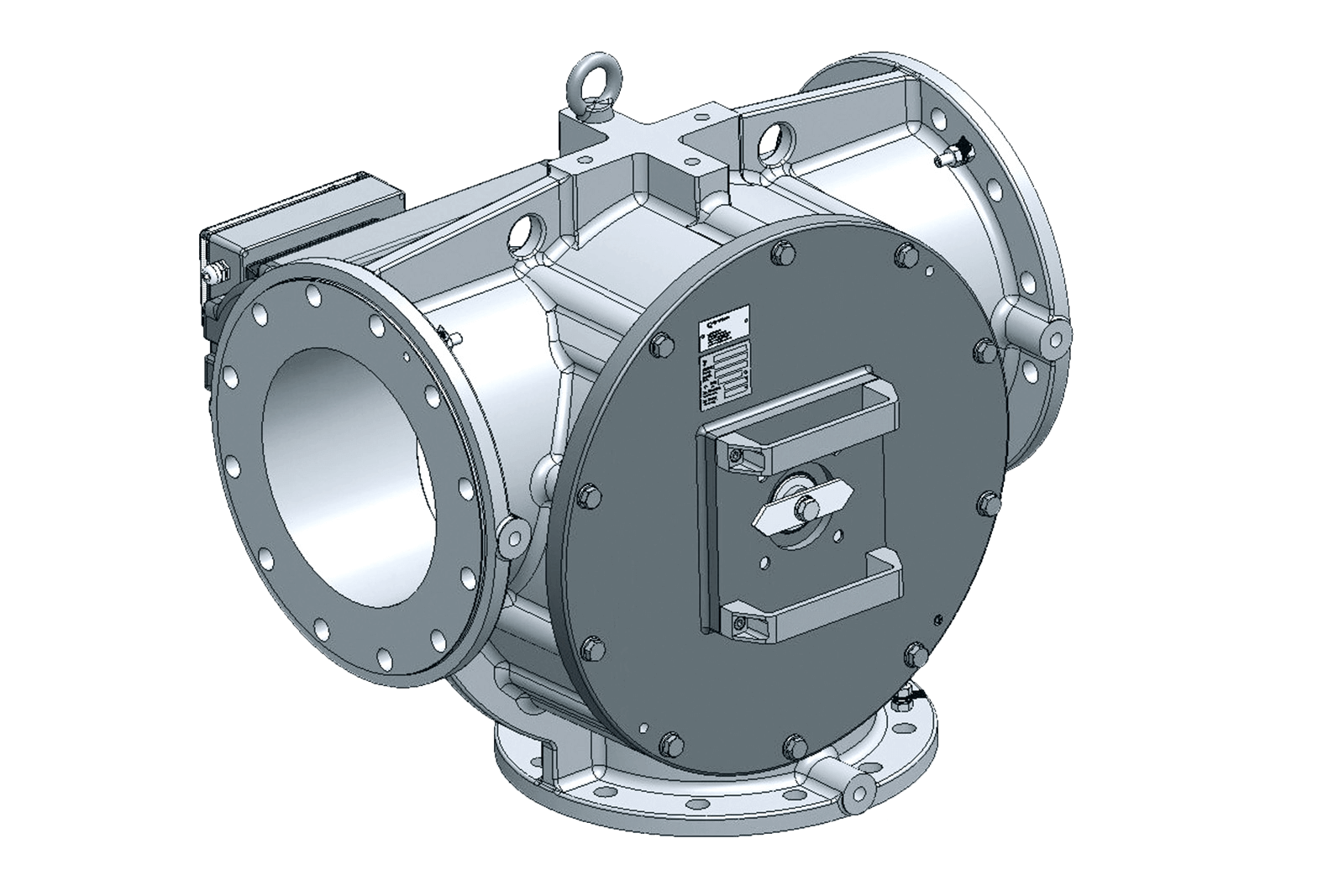

Single Channel Diverter Valve for Granular Products

  • In spherical design with 90° outlet
  • Developed for conveying lines for silo feeding at up to 6 barg

MAIN FEATURES

  • Pressure Range
    6 barg (87 psi) system and differential pressure
  • Pressure Surge Proof (Optional)
    10 barg (145 psi) due to heavy duty design (on request)
  • Operation Temperature
    -20°C up to 100°C
  • Application
    Suitable for fluid group 2 according PED (fluid group 1 on demand)
  • Seal Configuration
    Seal free, tight clearance between rotor and housing
  • Material of Construction
    Cast aluminium, product wetted parts hard coated

Related Industries

  • Plastics
  • Food & Pet Food
