Diverter valve for vacuum conveying systems

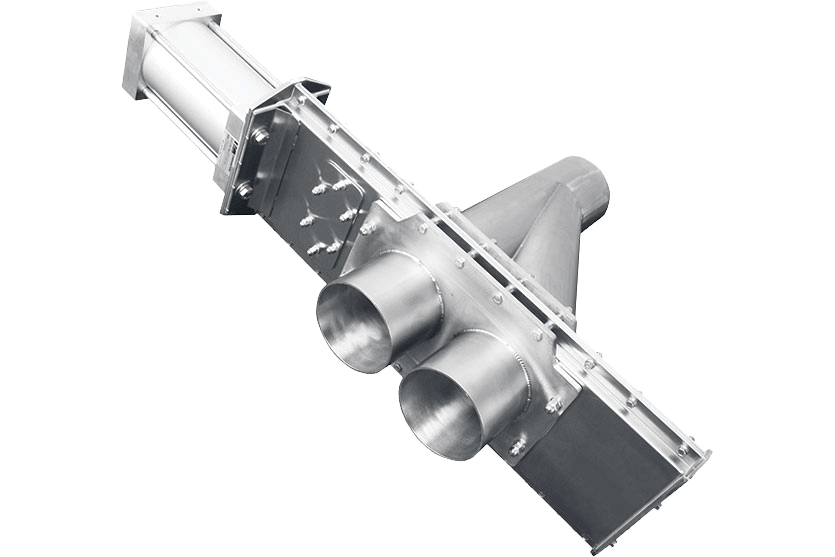

The Wye Gate diverter valve directs material (or air) from one source to multiple destinations in vacuum conveying systems. The gate's sliding orifice also allows the gate to be used in vacuum applications where material needs to be converged from two sources to one destination.

MAIN FEATURES

  • Valve has a straight-through conveying line for easier "in-line" installation
  • 50 to 200 mm [2 to 8 in] sizes
  • Aluminum frame with stainless steel gate blade and stubs, and nylon pressure plate gate seals
  • IP65, NEMA 4 enclosure
  • CE compliant, ATEX certification available

Related Industries

  • Plastics
  • Chemicals
  • Food & Pet Food
  • Minerals

Benefits

  • Compact and light for installation in crowded or overhead equipment areas
  • Each valve is designed for dilute phase pneumatic conveying service up to 1 bar(g) [15 PSI(G)] temperatures through 77°C [170°F]
  • All seals and surfaces are shielded from material abrasion
