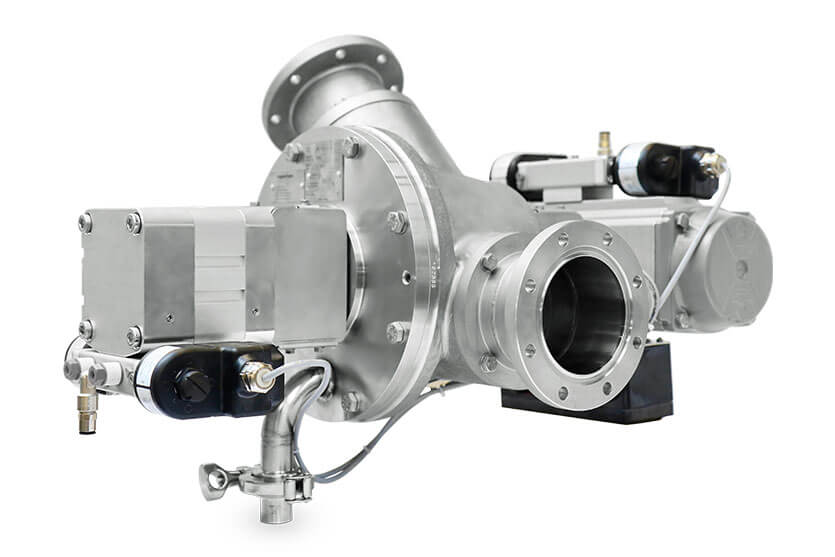

Stainless Steel Diverter Valve for Powders and Granular Products

  • Single channel diverter valve in conical design for easier dismantling
  • In sanitary and wet cleanable CIP version
  • For installation in conveying lines or in gravity pipes at up to 5 barg

MAIN FEATURES

  • Pressure Range
    5 barg (73 psi) system and differential pressure
  • Operation Temperature
    -20°C up to 100°C
  • Application
    Suitable for fluid group 2 according PED
    (fluidgroup 1 on demand)
  • Seal Configuration
    Elastomer seal, tight clearances between rotor and housing
  • Material of Construction
    Stainless steel
  • Surface
    Product wetted parts Ra = 0,8 µm

Related Industries

  • Plastics
  • Chemicals
  • Food & Pet Food

Function principle of WYK diverter valve for CIP cleaning
