Series 2400 Receivers

Want to find out more about this product?

Get in touch
Coperion K-Tron

Our most versatile line of receivers for a variety of bulk materials

Series 2400 powder and pellet receivers provide high capacity vacuum sequencing systems for powder, pellet, regrind and granular materials.

The receivers utilize a common vacuum blower package and are primarily used on multiple destination applications.

Features

  • Available in carbon steel, aluminum (painted) and stainless steel
  • Selection of gravity, orifice, slide or butterfly gate discharge valve types
  • Central system units utilize a common vacuum blower package
  • NEC models available
  • Full support discharge flange for mounting
  • Rugged modular design
  • Automatic reverse jet cleaning

Related Industries

  • Plastics
  • Chemicals
  • Food & Pet Food
  • Minerals
  • Nonwovens

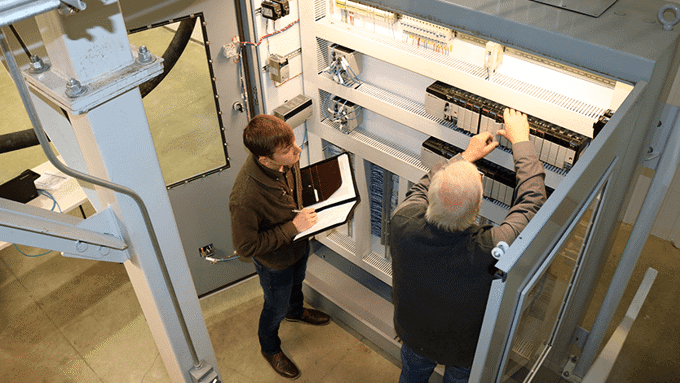

System Controllers

  • PLC - Programmable Logic Central Controller
  • MPC - Microprocessor Central Controller
  • LSR (Loader, Single Receiver) Controller - for single receiver applications
  • Feeder controls (K-Vision & KSC Smart Commander)

Series 2400 Receiver Selection Charts

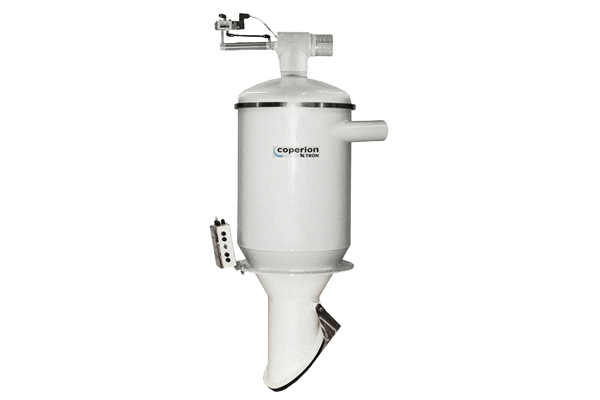

2424 pellet receiver with gravity flap valve

 (with standard gravity discharge gate)

Model Receiving Volume Conveying Rate
2406 Pellet 1 dm3 [0.039 ft3] 327 kg/h [720 lb/h]
2410 Pellet 11.7 dm3 [0.41 ft3] 1180 kg/h [2600 lb/h]
2415 Pellet 28.5 dm3 [1 ft3] 2722 kg/h [6000 lb/h]
2424 Pellet 134 dm3 [4.74 ft3] 6800 kg/h [15000 lb/h]

Note: Rates are based on a system profile of 15.2 m [50 ft] horizontal, 4.6 m [15 ft] vertical, 3 m [10 ft] hose, 2 x 90° bends. Convey rates may vary depending on product characteristics and conveying distance.

Hazardous location options (ATEX, NEC) available.

Specification Sheet Downloads

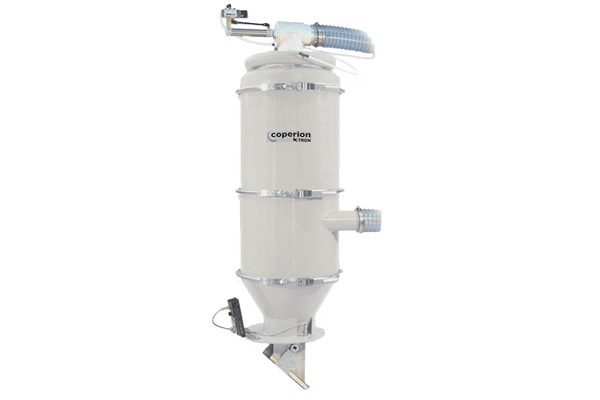

2415 pellet receiver with gravity flap valve

(with standard gravity discharge gate)

Model Receiving Volume Conveying Rate
2410 Powder 11.7 dm3 [0.41 ft3] 408 kg/h [900 lb/h]
2415 Powder 28.5 dm3 [1 ft3] 1000 kg/h [2200 lb/h]
2420 Powder 33 dm3 [1.16 ft3] 1225 kg/h [2700 lb/h]
2423 Powder 70.8 dm3 [2.05 ft3] 1406 kg/h [3100 lb/h]
2424 Powder 134 dm3 [4.74 ft3] 3175 kg/h [7000 lb/h]

Note: Rates are based on a system profile of 15.2 m [50 ft] horizontal, 4.6 m [15 ft] vertical, 3 m [10 ft] hose, 2 x 90° bends. Convey rates may vary depending on product characteristics and conveying distance.

Hazardous location options (ATEX, NEC) available.

Specification Sheet Downloads

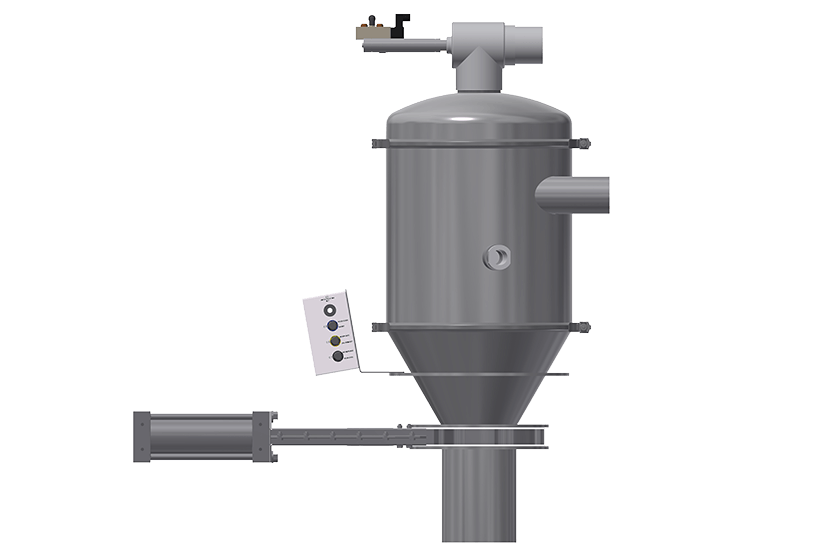

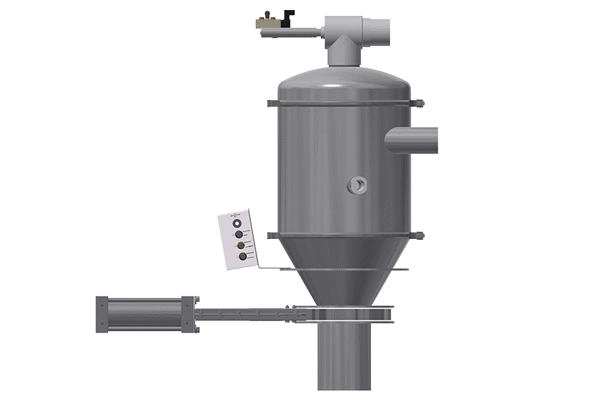

2415 Pellet Receiver with Slide Gate valve for feeder refill
2410 Pellet Receiver with slide gate for feeder refill

(with discharge valve for refilling feeders)

Model Receiving Volume Conveying Rate
2410 Pellet 9.7 dm3 [0.34 ft3] 1180 kg/h [2600 lb/h]
2415 Pellet 22.8 dm3 [0.8 ft3] 2722 kg/h [6000 lb/h]
2424 Pellet 106 dm3 [3.74 ft3] 6800 kg/h [15000 lb/h]

Note: Rates are based on a system profile of 15.2 m [50 ft] horizontal, 4.6 m [15 ft] vertical, 3 m [10 ft] hose, 2 x 90° bends. Convey rates may vary depending on product characteristics and conveying distance.

Hazardous location options (ATEX, NEC) available.

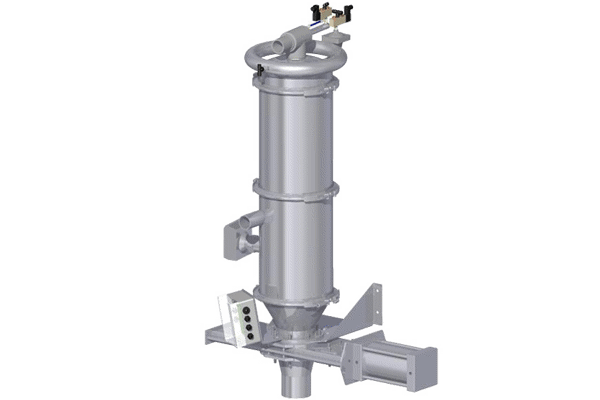

2410 Powder Receiver with slide gate for feeder refill

(with discharge valve for refilling feeders)

Model Receiving Volume Conveying Rate
2410 Powder 9.7 dm3 [0.34 ft3] 408 kg/h [900 lb/h]
2415 Powder 22.8 dm3 [0.8 ft3] 1000 kg/h [2200 lb/h]
2420 Powder 19.8 dm3 [0.7 ft3] 1225 kg/h [2700 lb/h]
2423 Powder 44 dm3 [1.55 ft3] 1406 kg/h [3100 lb/h]
2424 Powder 106 dm3 [3.74 ft3] 3175 kg/h [7000 lb/h]

Note: Rates are based on a system profile of 15.2 m [50 ft] horizontal, 4.6 m [15 ft] vertical, 3 m [10 ft] hose, 2 x 90° bends. Convey rates may vary depending on product characteristics and conveying distance.

Hazardous location options (ATEX, NEC) available.

Specification Sheet Downloads
