防腐耐磨方案

从标准材质到极为耐磨耐腐的材质,全范围均可供您选择。

定制化的耐磨耐腐材质方案

即使是难度很大的产品和应用,ZSK双螺杆挤出机仍可以做到非常高的产量。凭借丰富的经验,科倍隆提供最高级别的耐磨耐腐方案:根据您的独特需求,我们的专家会帮助您从150多种材质中精准选择合适的组合,确保耐磨部件最高的可靠性和耐用性,同时兼顾性价比。在采购新的ZSK挤出机,或购买丰富的备件产品时,您都可以享受到这项服务。

螺纹元件和筒体的耐磨保护

Wear protection for screw elements and barrels
适于不同应用的挤出机筒体和螺纹元件材质方案

选择合适的材质方案,首先考虑的是具体应用和产品的技术需求。对磨损和腐蚀要求不高的应用,可以选择基础的保护方案;如果需要延长使用时间,则可以选择最高级别的耐磨耐腐材质。接下来,我们会为您挑选最高效的材质组合

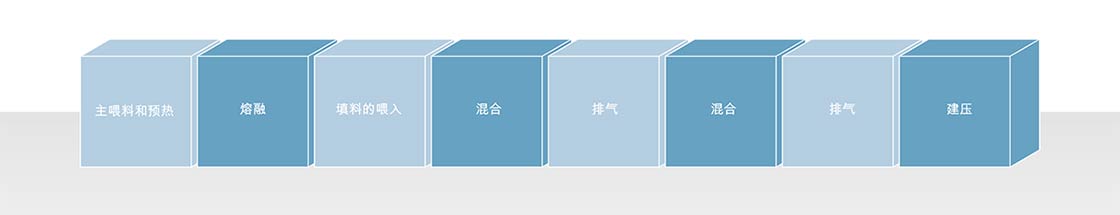

Process Section of a ZSK Extruder of Coperion

C-ROCK: WEAR MATERIAL FOR HIGHEST PROTECTION OF ZSK EXTRUDER BARRELS

C-Rock is characterized by its highly wear and corrosion resistant matrix with specially selected hard material components. It is applied to product-contact parts of the ZSK extruder barrels using a technologically advanced manufacturing process. The result is a completely homogeneous, closed surface screw channel and first-class adhesion of C-Rock to the base material.

C-Rock gives the highest protection against abrasion and corrosion to the barrels of Coperion ZSK extruders. It allows for highest productivity even in difficult applications with aggressive products and extends the life of the barrels.

C-Rock is particularly effective in heavily stressed areas of the process section such as in the melting zone, when mixing in abrasive particles, fibers or powders, and in the pressure build-up zone. These zones are when C-Rock is most worthwhile to apply, keeping barrel wear to a minimum and ultimately increasing the efficiency of the entire extrusion line significantly.

  • Coating thickness of 1.5 mm
  • First-class adhesion of the coating to the base material
  • For closed standard barrels
  • For extruder sizes ZSK 70 and ZSK 92
  • Available as directly coated barrels and liners
  • Retrofitting of liner barrels with C-Rock possible

The wear material C-Rock is particularly suitable for compounding PA, PBT, PP, HT plastics with glass and carbon fibers, ceramic masses, metal masses and powders. We recommend C-Rock for extruder barrels in the melting, mixing and pressure build-up zones of the process section.

耐磨耐腐的螺纹元件与高耐磨涂层筒体

Wear and corrosion resistant screw elements and direct coated barrel
