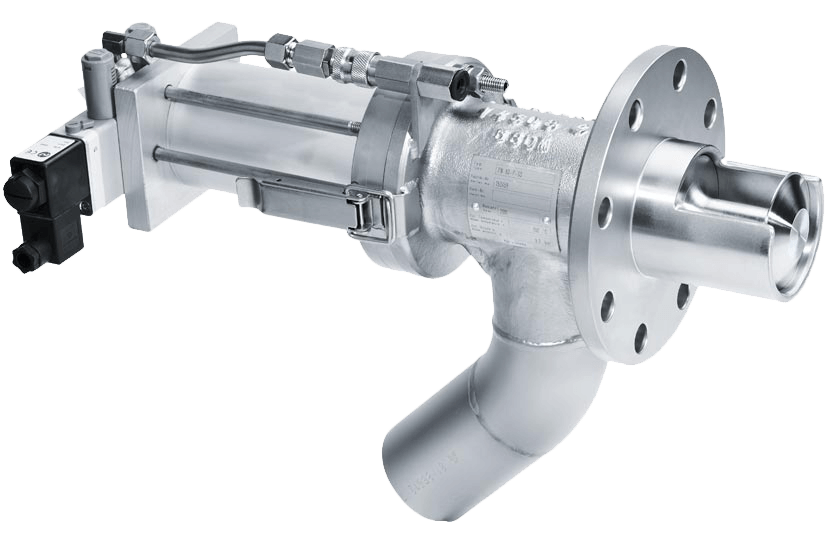

For sampling out of hopper cones or gravity pipes

  • Pressure range +/- 0.2 barg (2.9 psi) system and differential pressure (except S2 execution)
  • Operation temperature -20°C up to 80°C
  • Double piston with 0.2 l volume activated by pneumatic actuator
  • Installation position up to 30° to the horizontal
  • Housing cat aluminium or stainless steel*, piston stainless steel
  • Executions for granule products and powders
  • Pistons for free flowing, abrasive or sticky products
  • Food execution (quick cleaning, only with S2 piston)*
  • Applicable in Ex-Zones with additional accessories*
  • Control unit for cycle times*

* Option
