DLM Solids Flow Meter

Want to find out more about this offering?

Get in touch

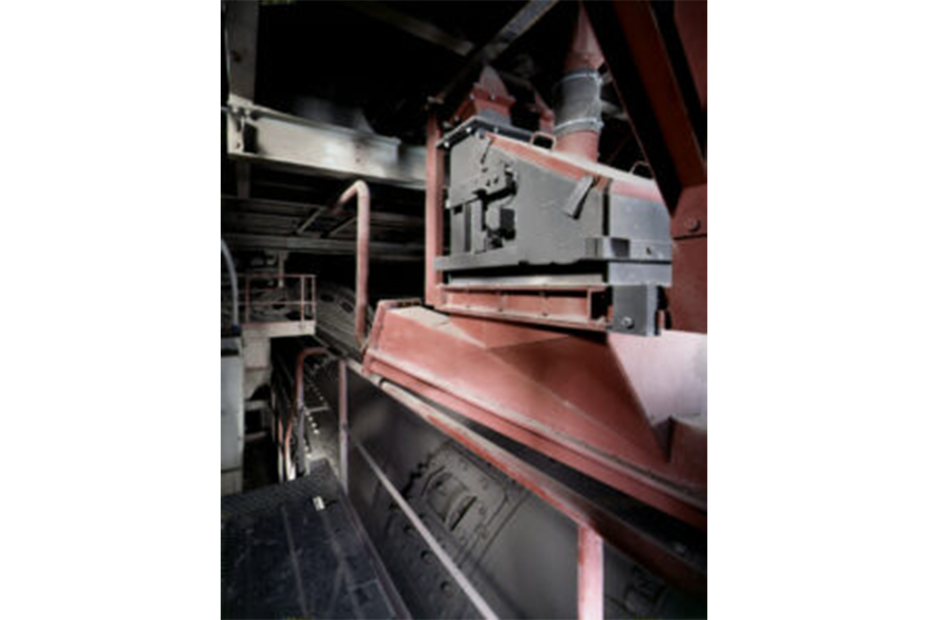

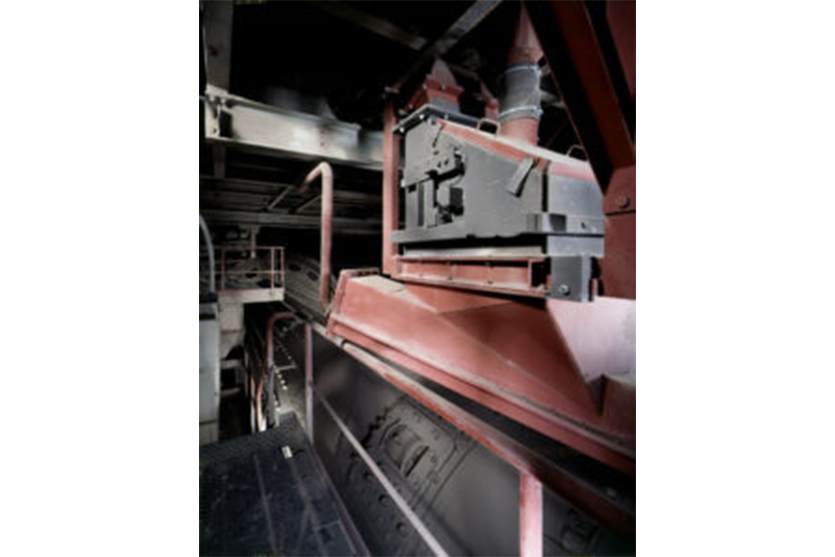

DLM is a deflection chute flow meter

Processing Diverse Material Sizes at Elevated Temperatures

The DLM is a deflection chute flow meter designed for accuracy and repeatability. It is a compact in-line measurement system for the continuous recording of bulk solid streams using non-impact force measurement. The material stream is “gently” deflected via an in-line measuring chute. The system ensures that impact factors, which vary depending on the bulk solids, are not incorporated into the results. DLM therefore generates better, reproducible data to ensure product quality.

DLM has a dust-containing design and robust construction. DLM, paired with a flow-controlled pre-feeder, turns into a feeding system. Depending on the application, we also deliver special individual designs – even for hot materials. Single source planning, delivery and service.



benefits & features

  • Feed rates range from 19824 to 906240 dm3/h [700.078 to 32,003.58 ft3/h]
  • Measures high flow rates of free-flowing pulverized or granular materials
  • Handles material temperatures up to 246°C [475°F]
  • Dust-containing design
  • Feeding of additives and raw meal
  • Batching at mixers or charging in a loading station

Related Industries

  • Plastics
  • Chemicals
  • Minerals

Download product specification sheet for more details:
