MechaTron® 3-A Single Screw Feeder

Get in touch about this offering

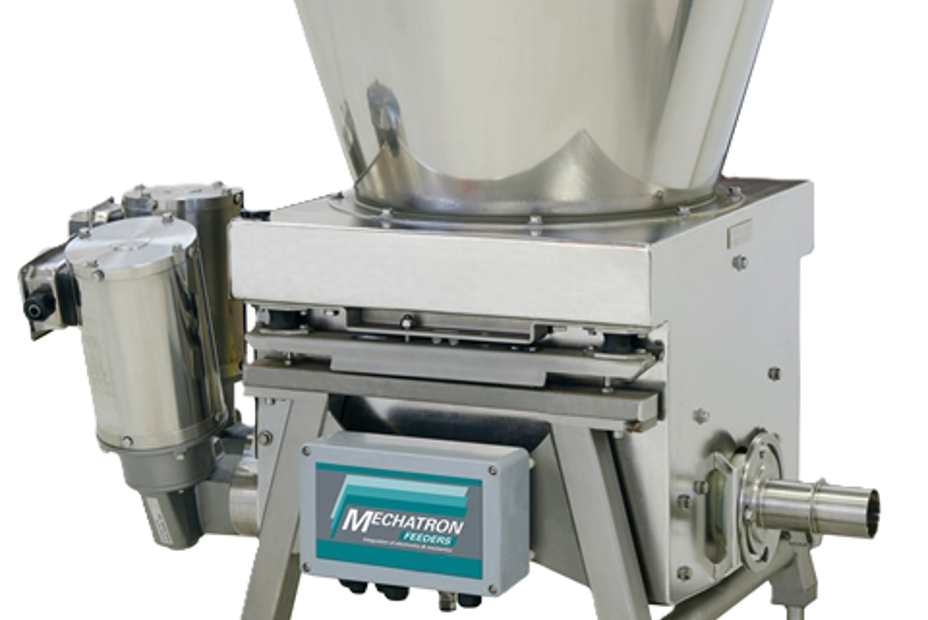

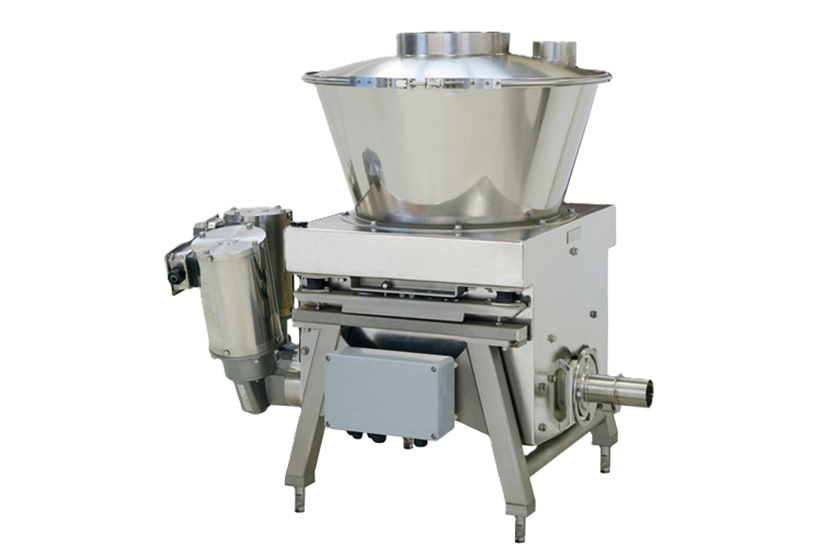

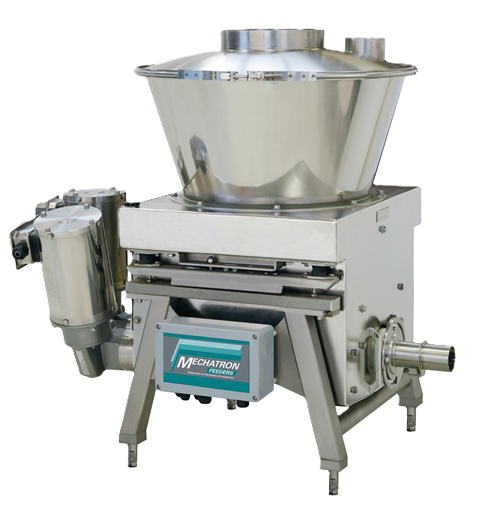

MechaTron® 3-A Screw Feeder

Compact and cost-effective

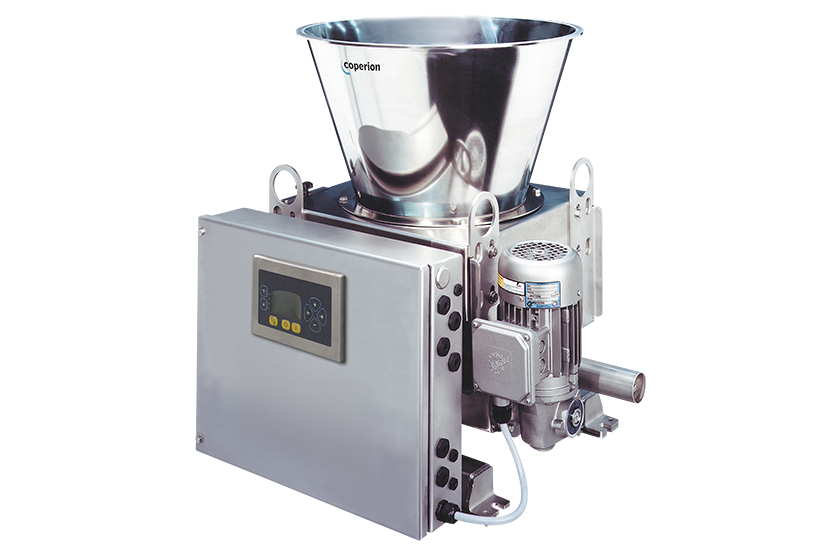

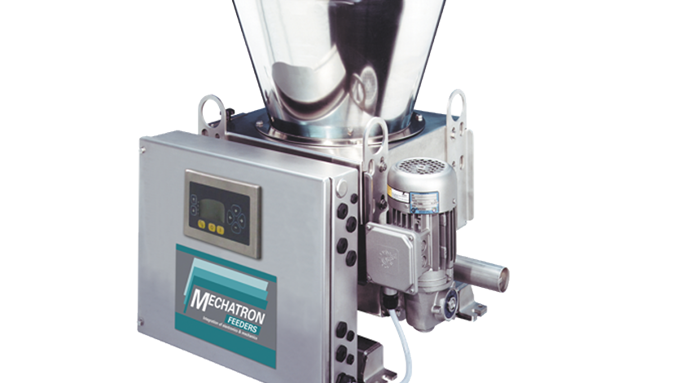

The MechaTron® 3-A screw feeder was designed specifically for use in food and dairy industry process applications where equipment must meet 3-A sanitary levels or equivalent. All welds, radii, seals, surface finishes, gaskets, and contact and non-contact materials meet 3-A standards. Available product features include AC and DC drive packages, an FDA / USDA accepted “Coni-Flex™” flexible conical feed-hopper, helix configurations for feed rates from 0.30 to 330 cubic feet (8.5 to 9,300 liters) per hour and an unmatched ability to disassemble, clean, reconfigure, and service from the non-process side of the feeder.

A domed hopper cover and open bottom frame speeds and optimizes draining during and after wash-down cycles. Smooth, crevice-free product contact surfaces at 32 micro inch or better help prevent the formation of bacteria.

benefits & features

  • Volumetric and gravimetric configurations for feed rates ranging from approximately 8.56 to 9,300 dm3/h [0.30 to 330 ft3/h]
  • 3-A accepted feeder for food, dairy, and sanitary feeding applications
  • Crack and crevice-free contact surfaces
  • FDA compliant internal feed hopper

Related Industries

  • Plastics
  • Plastics Recycling

Download product specification sheet for more details:
