Coperion Feeder Finder

ProRate PURE I Single Screw Feeder

Get in touch

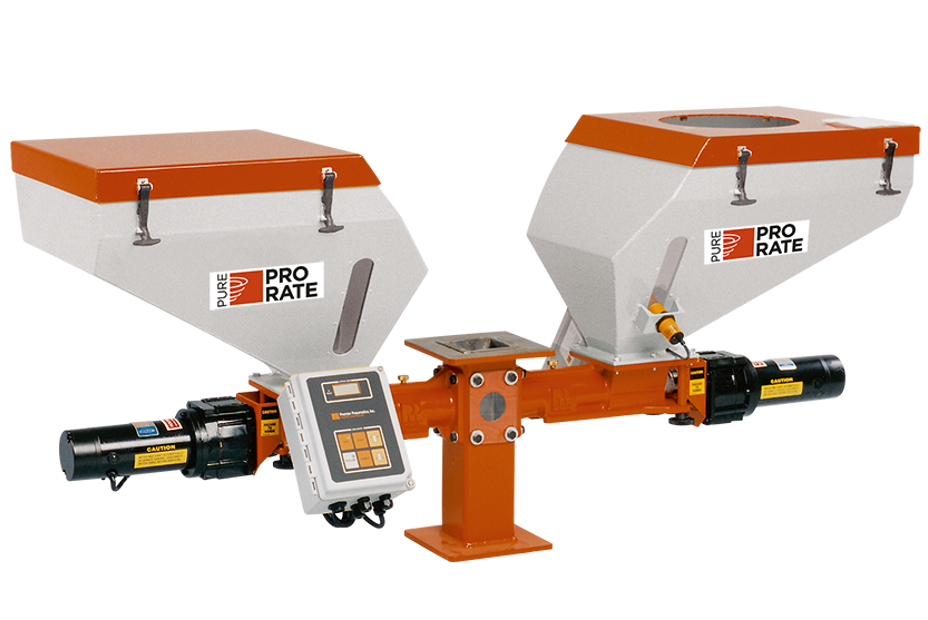

Two ProRate PURE I Feeders on a central gravity mixer stand

ProRate PURE I Single Screw Feeder

As the material enters the processing machine, the volumetric ProRate PURE Feeder precisely meters pelletized color concentrates, modifiers or free-flowing additives into the raw material stream. Designed for modular flexibility, ProRate PURE feeders can be added or removed to adapt to changing requirements. If, for example, an operator starts metering one ingredient and wishes to add a second, simply bolt another ProRate PURE Feeder onto the pedestal.

ProRate PURE feeders come in two sizes and can be combined with the Gravity Mixer or the ProBlend Mixer base to deliver a material blend into the process below.

Please note that ProRate PURE feeders are not CE compliant.

benefits & features

  • Feed rates range from 9 to 907 dm3/h [.32 to 32 ft3/h]
  • Selection of five interchangeable auger sizes
  • Cast aluminum housing
  • Modular carbon steel pedestal accommodating up to 4 feeders
  • Easy calibration
  • Quick material change with swing-away motor design
  • Microprocessor controller
  • Choice of 0.04 and 0.07 m3 [1.75 and 2.5 ft3] hoppers
  • Heavy-duty DC motor drives

Related Industries

  • Plastics
  • Plastics Recycling

Download product specification sheet for more details:
