How Can Upstream Systems Engineering Improve Consistency in Modern PVC Production?

June 2026


PVC product performance is influenced by a wide range of factors that occur well before extrusion or molding. As formulation requirements evolve and production environments become more complex, upstream processes—such as material handling, feeding, compounding, and process control—play an increasingly important role in achieving consistent outcomes.

Upstream process stability is essential for consistent PVC product performance.

Increasing Complexity in PVC Production

PVC remains one of the most widely used thermoplastics due to its durability, versatility, and cost-efficiency across applications including construction, healthcare, consumer goods, and industrial systems.

Despite its long-established use, modern PVC production presents growing challenges. Producers are managing:

  • Expanding product portfolios
  • Higher filler content and increased use of regrind
  • More stringent quality requirements
  • Ongoing pressure to reduce energy consumption and costs

Under these conditions, even small variations in materials or process parameters can lead to quality deviations, reduced efficiency, or increased waste. As a result, consistency is increasingly addressed through upstream engineering rather than downstream correction.

Viewing PVC Production as an Integrated System

The adaptability of PVC originates from its formulation flexibility. Combining base resin with stabilizers, fillers, plasticizers, and other additives enables customization for diverse applications such as pipes, flooring, cables, and profiles.

However, PVC’s processing characteristics introduce sensitivity to heat, shear, and oxygen. This makes product quality dependent not only on formulation chemistry but also on how materials are managed throughout the process lifecycle – including conveying, storage, dosing, mixing, cooling, and transfer.

This highlights the need to view PVC production as a connected system, rather than a sequence of independent steps.

Raw Material Behavior and Its Operational Impact

PVC compounds incorporate materials with varied physical properties. Differences in particle size, density, shape, porosity, and flowability can significantly affect process performance.

These properties influence:

  • Conveying stability and segregation tendencies
  • Feeding precision and repeatability
  • Mixing efficiency and thermal behavior
  • Dust generation and workplace conditions

Additionally, global sourcing and logistics introduce variability that may not be captured in standard material specifications. Factors such as transportation time, humidity exposure, and storage conditions can alter material behavior by:

  • Increasing compaction or segregation
  • Affecting moisture content and flowability
  • Changing discharge characteristics

Such variations can impact process performance, particularly when working with fine powders and higher filler loadings. Recognizing material behavior as a dynamic input, shaped by both formulation and supply chain conditions, is essential for maintaining consistency.

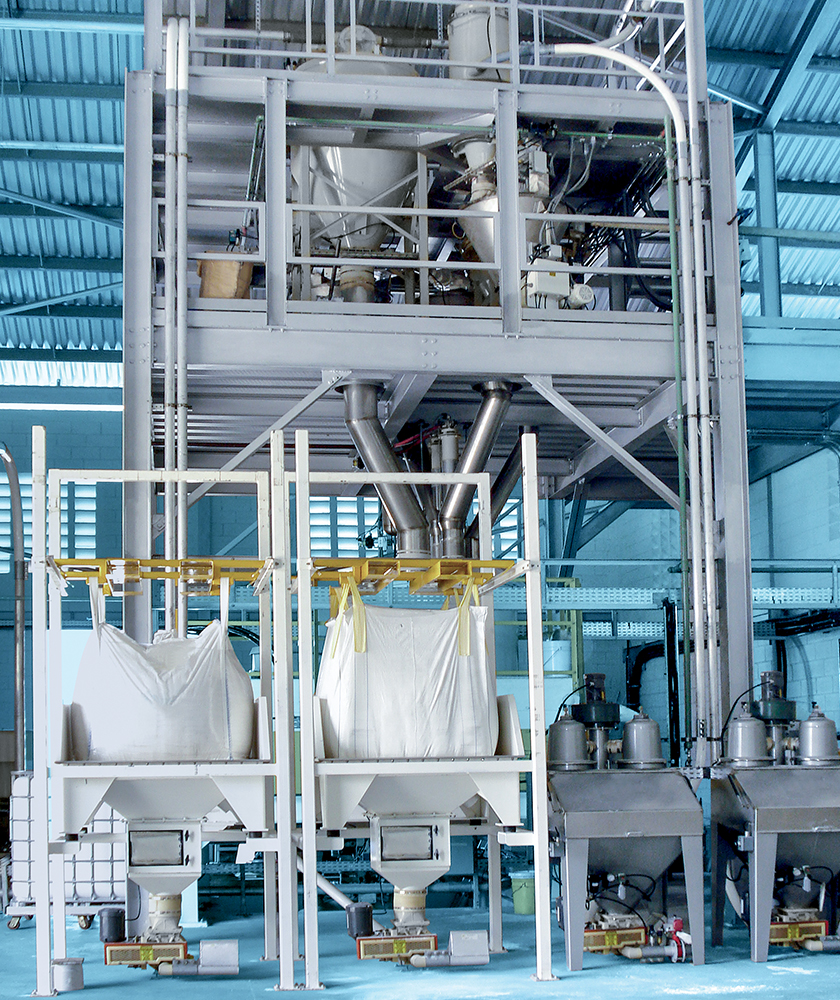

Coperion process equipment in production plant

The Role of Feeding Accuracy

Ingredient dosing has a direct effect on both product quality and production cost. Variations in the addition of stabilizers, pigments, or performance additives can result in off-spec material or reduced functional properties.

To manage this, operations often combine volumetric and gravimetric feeding systems:

  • Volumetric feeding may be suitable for less sensitive components
  • Gravimetric systems, such as loss-in-weight (LIW) or gain-in-weight (GIW), are typically used for high-precision requirements

Equally important is aligning feeder design with material behavior. Free-flowing materials can usually be handled with simpler mechanisms, while cohesive or poorly flowing powders often require more specialized equipment.

Feeding decisions should therefore be aligned with both formulation requirements and material handling characteristics.

Dry-Blend Production Considerations

Dry blending is a key step in many PVC processes. High-intensity mixing generates frictional heat, raising material temperatures to support dispersion and plasticizer absorption.

Process stability during this stage depends on:

  • Controlled sequencing of ingredient addition
  • Accurate temperature management
  • Consistent cooling after mixing

Variability introduced during blending can propagate downstream, affecting extrusion performance and final product quality. In some cases, additional homogenization techniques such as silo blending or pelletizing are used to reduce batch-to-batch variability.

Process Control and Data Integration

As production complexity increases, automated control systems play a larger role in ensuring repeatability and traceability. These systems can support:

  • Automated material handling and inventory tracking
  • Precise recipe execution
  • Monitoring of process parameters such as temperature and pressure
  • Data collection for quality assurance and compliance

Beyond efficiency, these tools contribute to process transparency and consistency, particularly in regulated or high-performance applications.

Advancing a Systems-Based Approach

PVC production environments often involve challenges such as abrasive materials, space constraints, and the need to maintain operations during equipment upgrades. These factors reinforce the importance of a systems-based approach to design and operation.

This approach extends beyond plant equipment to include upstream influences such as sourcing, transportation, and storage conditions. Consistency in modern PVC production depends on aligning:

  • Material properties and formulation design
  • Supply chain variability
  • Bulk material handling and feeding systems
  • Process automation and control strategies

A comprehensive view can support improved reliability, reduced variability, and more predictable performance across operations.

Key Considerations

  • Upstream processes significantly influence outcomes: Material handling, feeding, and preparation steps contribute directly to final product quality.
  • Material behavior should guide system design: Variability in physical characteristics, and the impact of supply chain conditions, should be accounted for.
  • Integrated systems improve consistency: Coordinating equipment, controls, and data can enhance repeatability and operational stability.
