BX Belt Scale

BX Belt Scale

Accurate belt conveyor scales

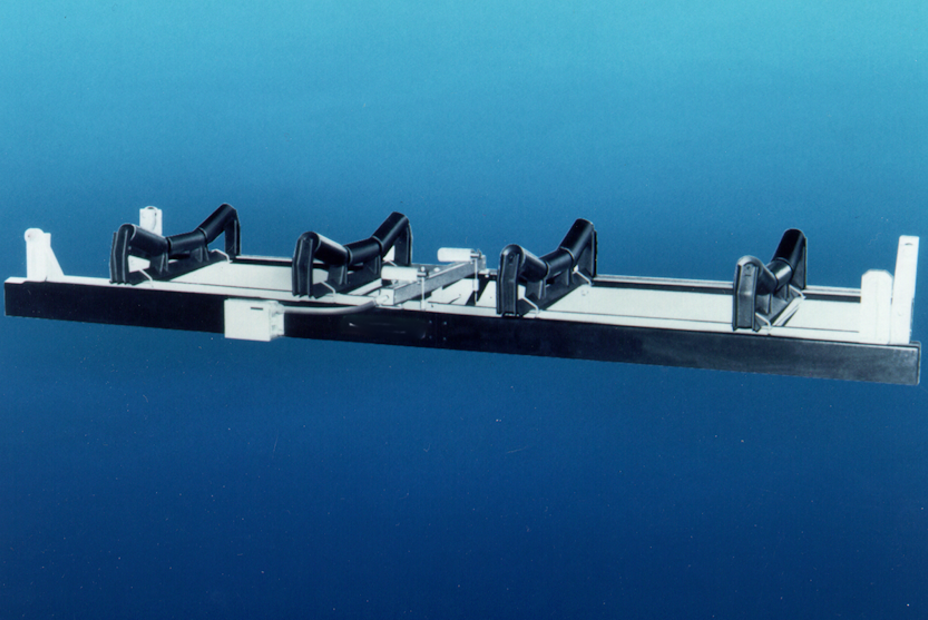

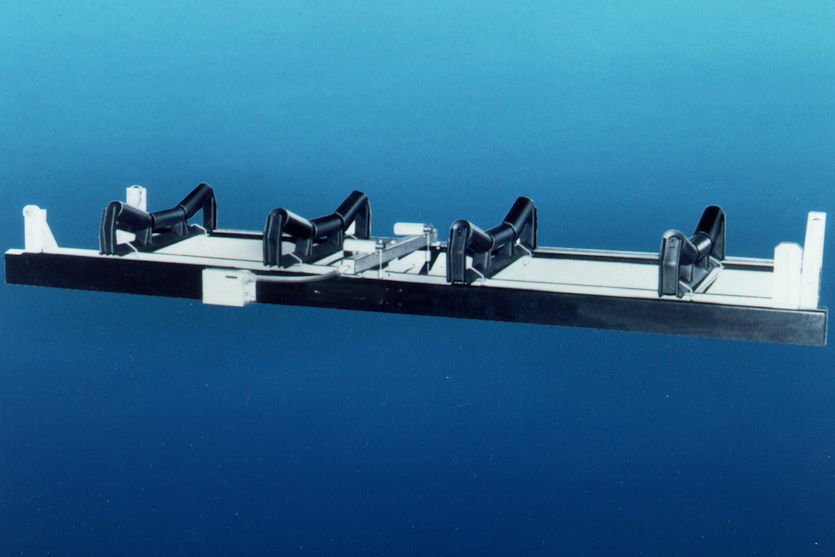

The Coperion BX series belt conveyor scales combine high accuracy and reliability in a rugged, user-friendly design. Both the BX-2 and BX-4 feature high accuracy dual tension strain gauge load cell weighing technology in a proven approach-retreat design. Each BX series belt scale suspension is designed to match existing stringer gauge and idler spacing, minimizing total installation time and cost.

benefits & features

  • Feed rates range from 10 to 100 t/h
  • Two configurations: Model BX-4 with 4 idler bridge and BX-2 with 2 idler bridge
  • Easily installed with minimal field conveyor modifications
  • Designed for belt widths from 35.5 to 243.8 cm [14 to 96 in]
  • Rugged construction provides years of trouble-free service in the harshest environments
  • No special tools required
  • Fully assembled and tested prior to shipment
  • Custom designs available

Accuracy:

  • Model BX-4 ± 1/4% of totalized weight over a 3 to 1 range
  • Model BX-2 ± 1/2% of totalized weight over a 3 to 1 range accuracy static weighing system

Related Industries

  • Plastics
  • Plastics Recycling
  • Chemicals
  • Minerals

Download product specification sheet for more details:
