P10 venturi loader meets 3A dairy sanitary requirements
Coperion K-Tron

Conveys powders for sanitary, pharmaceutical, food and chemical applications

The Coperion K-Tron P10 loaders can be used for conveying applications such as hopper loading, as well as loss-in-weight feeder refill applications, where the loader is not always emptied completely. It is designed to convey powders and meets 3A dairy sanitary requirements.

The venturi power unit utilizes compressed air to create a vacuum convey source.

Features

  • Stainless steel construction (DIN 1.4404, AISI 316L)
  • Selection of powered flap and active driven butterfly valve discharge types
  • Meets cGMP standards and includes FDA approved and certified materials
  • Enclosed venturi power unit
  • Sanitary design for easy cleaning
  • Rugged modular design
  • Steep cone angle ensures excellent discharge
  • Large area reverse jet filter for efficient powder conveying

Related Industries

  • Chemicals
  • Food & Pet Food
  • Pharmaceutical

P-Series Loader Selection Chart

Model Loader Volume (max.) Conveying Rate (max.)
Discharge Valve
P10-FP-150-VE 9.5 dm3 [0.34 ft3] 300 kg/h [660 lb/h] Power flap Ø 150 mm [6 in]
P10-BV-100/150-VE 7.3 dm3 [0.26 ft3] 300 kg/h [660 lb/h] Butterfly valve Ø 100, 150 [4, 6 in]

Note: rates based on a distance of 6 m [20 ft] and bulk density of 0.5 kg/dm3 [31 lb/ft3]. Rates vary with material characteristics, conveying distance and plant layout.

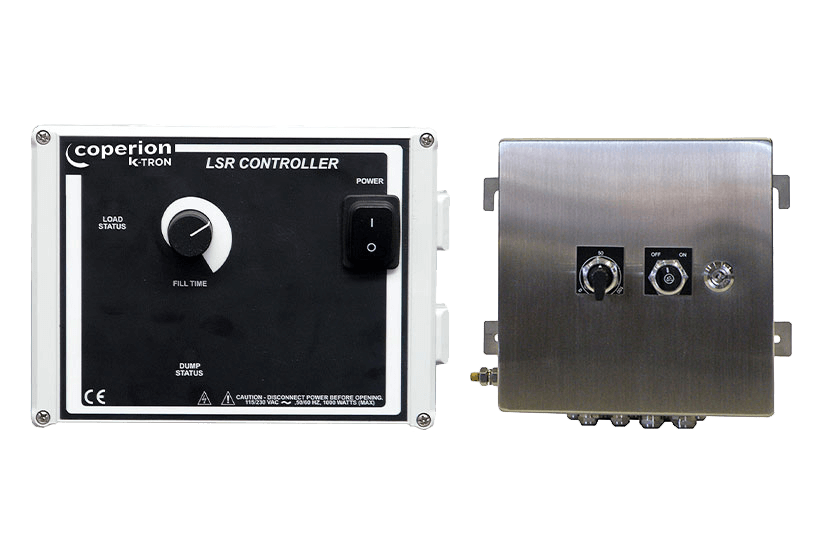

Controls: LSR (Loader, Single Receiver) Controller

Hazardous location options (ATEX, NEC) available.
