Auxiliary Equipment

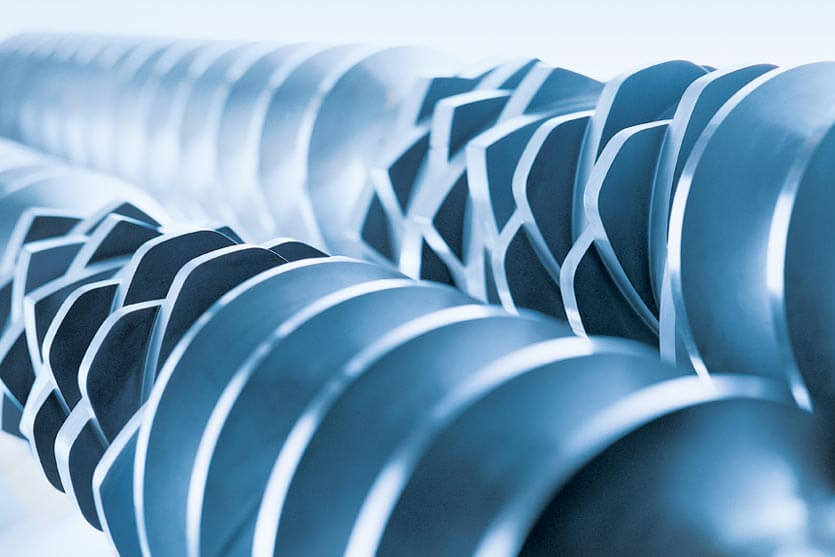

Twin screws of Coperion's ZSK extruder

For highest level of product quality and productivity

Coperion offers comprehensive auxiliary equipment for its compounding and extrusion lines. These application-specific special solutions such as the Feed Enhancement Technology (FET) or the ZS-EG side devolatilization guarantee the highest level of product quality and productivity of our compounding and extrusion lines. They are the result of our continuous research and efficiently improve application processes.

Together with our comprehensive process engineering support the auxiliary equipment helps to simplify the operation of our machines and systems increasingly.

Auxiliary Equipment

Feed Enhancement Technology (FET)

In this patented technology the feeding zone of ZSK extruders is equipped with a porous, gas-permeable wall section to which a vacuum is applied externally. The resulting gas extraction increases the material intake capacity in the processing of feed limited products by up to three times.

The results of the FET technology are considerable increases in the throughput rate and greater cost effectiveness of the compounding plant.

Feed Enhancement Technology FET
Coperion side devolatilization ZS-EG

Side Devolatilization Unit ZS-EG

The performance capability of the ZSK and the STS series with a conventional top vent barrel can be limited in many cases especially in the extrusion of low-viscous melts and extrusion processes with high gas volumes.

The ZS-EG twin screw side devolatilization provides the solution for ZSK and STS extruders. With its large free cross section for the devolatilization, it keeps the melt reliably in the process section during operation without product leakage even at maximum specific torque of the extruder. Throughput increases of up to 30% with, at the same time, considerably improved product quality are possible.

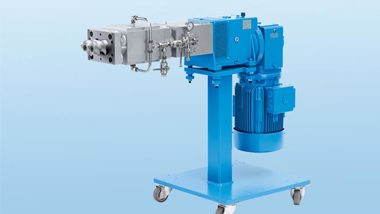

Coperion side feeder ZS-B

Side Feeder ZS-B

The ZS-B twin screw side feeder for ZSK extruders enables the side feeding of fillers and additives in powder or pellet form or cut glass fibers into the processing section of the twin screw extruder. The ZS-B features a self-cleaning cleaning profile of the twin screws and product feeding into the screw flights of the extruder without stagnant zones. Very little space is required for the side feeder thanks to its compact design.

It can be mounted anywhere on the extruder’s process section with a side feed or combi barrel. Swivel connections on the barrels allow fast assembly and disassembly.

Die Head

The die head for Coperion twin screw extruder series ZSK features optimum flow geometry. It ensures highest throughputs with gentle product handling and maximum heat transfer.

Quick-release clamps at feed hopper, degassing dome and atmospheric venting

The feed hopper for ZSK extruders is only clamped to the process section with bolts. It can be removed very quickly by simply loosening these bolts. Then the quick-release insert which protects the barrel wall from contamination can very easily be changed.

For quick and easy cleaning, the degassing dome and the atmospheric venting are also equipped with quick-release clamps in the ZSK Mc18 series. The units can be removed by loosening just four bolts. In addition, the connection of the vacuum line on the degassing dome is equipped with a quick-release c-clamp.

Coperion screen pack changer SWZ

Screen Pack Changer SWZ

The SWZ screen pack changer from Coperion ensures the maximum productivity of your compounding plant. It is designed especially for the melt filtration in high-performance compounding plants. The screen pack can be changed during operation without interrupting production.

SWZ Screen Pack Changer

Melt Pump MP

Use of a melt pump is necessary in individual cases for processing and pelletizing polyolefins. It ensures the necessary pressure build-up for the melt filtration and pelletizing at a very low introduction of energy. The Melt Pumps MP from Coperion are adapted individually to the project requirements as well as the ZSK MEGAcompounder.

MP Melt Pump
