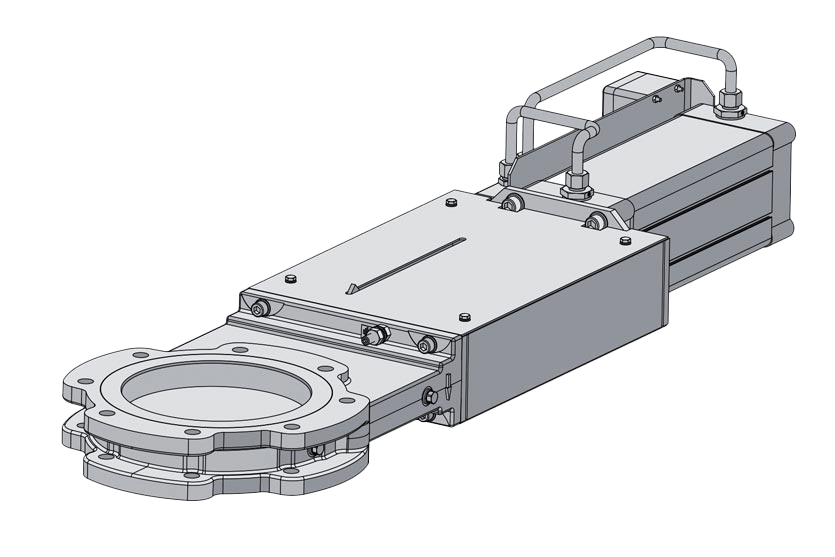

Conveying Line Gate Valve FUT

Want to find out more about this product?

Get in touch

Stainless Steel Slide Gate Valve for Powders and Granular Products

  • With optimized free cross section without restriction of pipe diameter
  • Particularly for installation in conveying lines at up to 4.5 barg
  • Low construction height

MAIN FEATURES

  • Pressure range
    4.5 barg (65 psi) system and differential pressure
  • Operation temperature
    -20°C up to 100°C
  • Application
    Suitable for fluid group 2 according PED
    (fluid group 1 on demand), for all bulk materials with d10 > q0 µm and d90 < 6 mm
  • Seal configuration
    Seal in the drop through opening, gland sealed to the outside
  • Material of construction
    Stainless steel

Related Industries

  • Plastics
  • Chemicals
  • Food & Pet Food
