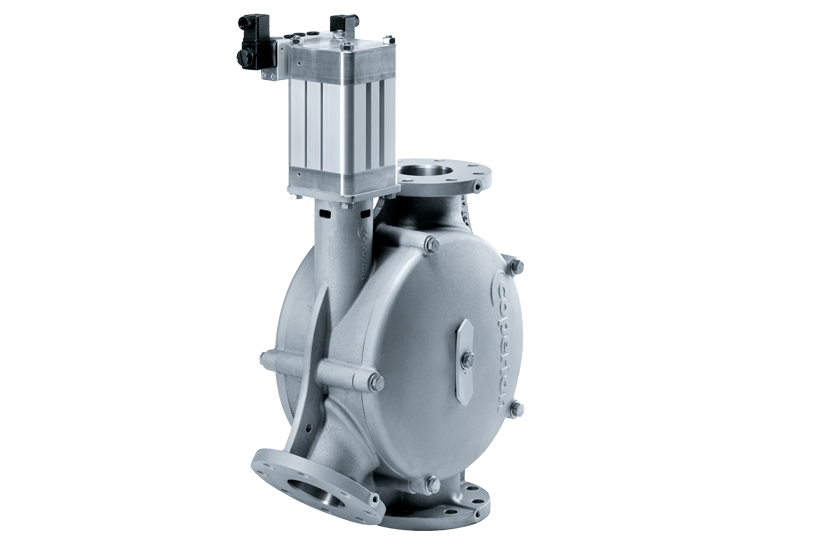

Dual Channel Diverter Valve for Powders and Granular Products

  • In cylindrical design with pressure assisted seals
  • For installation in conveying lines or in gravity pipes at up to 5 barg
  • Coperion's original - world-wide top selling diverter valve

MAIN FEATURES

  • Pressure Range
    5 barg (73 psi) system and differential pressure
  • Pressure Surge Proof (Optional)
    10 barg (145 psi) due to heavy duty design (on request)
  • Operation Temperature
    -20°C up to 100°C
  • Application
    Suitable for fluid group 2 according PED (fluid group 1 on demand)
  • Seal Configuration
    Pressure assisted seal at each part
  • Material of Construction
    Cast aluminium with stainless steel pipe insert

Related Industries

  • Plastics
  • Chemicals
  • Food & Pet Food
  • Minerals
