Coperion K-Tron

Smart Feeding Solutions

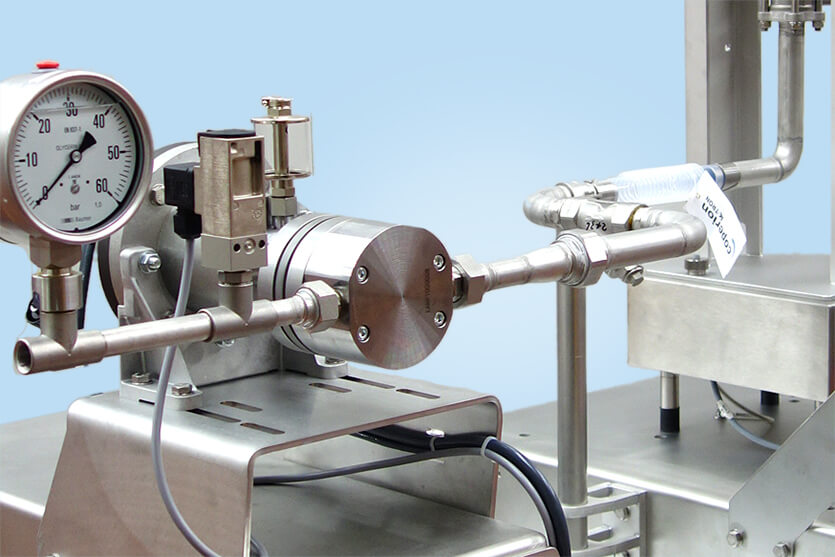

No two process applications are the same, and Coperion K-Tron offers the widest range of feeding solutions in the industry. From screw feeders to vibratory feeders, bulk solids pumps, weigh belts, liquid feeders and flow meters, all feeders are offered in a variety of configurations, which can be combined to create an optimal solution for any application.

Benefits & Features

  • Wide range of feeding tools
  • Dependable volumetric feeders
  • Highly accurate gravimetric feeders
  • Patented SFT weighing technology
  • State-of-the-art controls
  • Special food-grade and polish finishes available for hygienic applications

Areas of Application

We offer highly accurate solutions for handling a wide range of ingredients. Paper or plastic? Food or pharmaceuticals? Whatever the industry, we supply the feeders at the core of your manufacturing process. Our feeders can be found wherever bulk materials are processed, for a wide variety of applications. From chocolate chips to fiberglass, floodable powders to plastic pellets and waxy liquids, Coperion K-Tron offers the right feeder for any material.

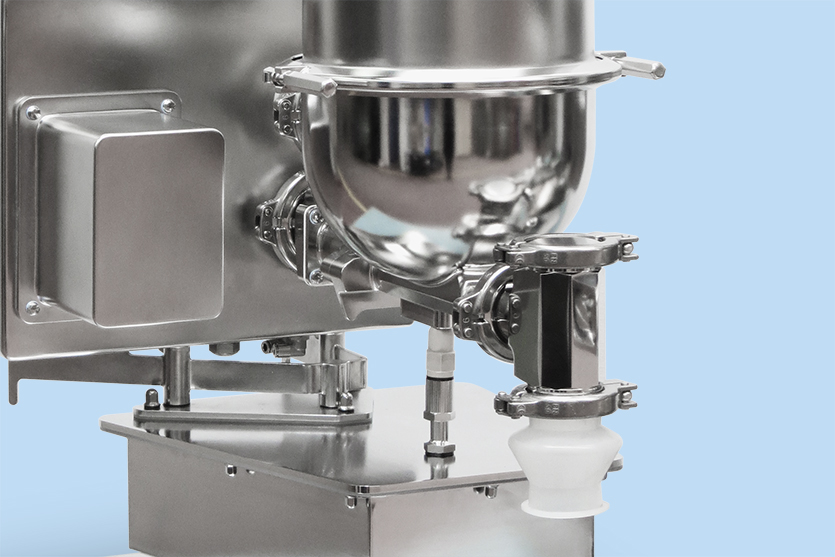

Most feeders are available in either standard finish or special finishes with higher polish levels and ground welds for applications in the food industry, for example.  A special line of screw and vibratory feeders has been developed specifically for the strict hygiene requirements of applications in the pharmaceutical industry.

Feeders to Meet a Wide Range of Applications

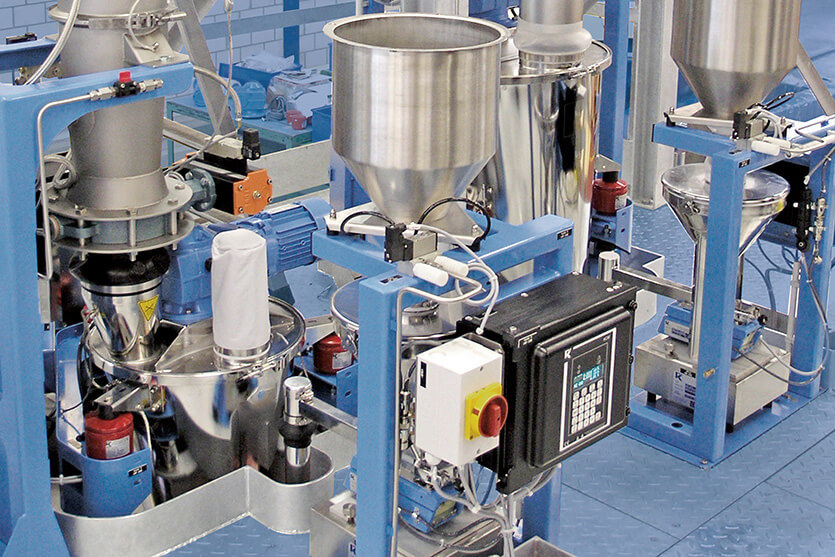

Coperion K-Tron offers a wide variety of feeding solutions to handle most bulk materials in a wide range of applications involving prefeeding, feeding or batching.

Core Feeding Technologies

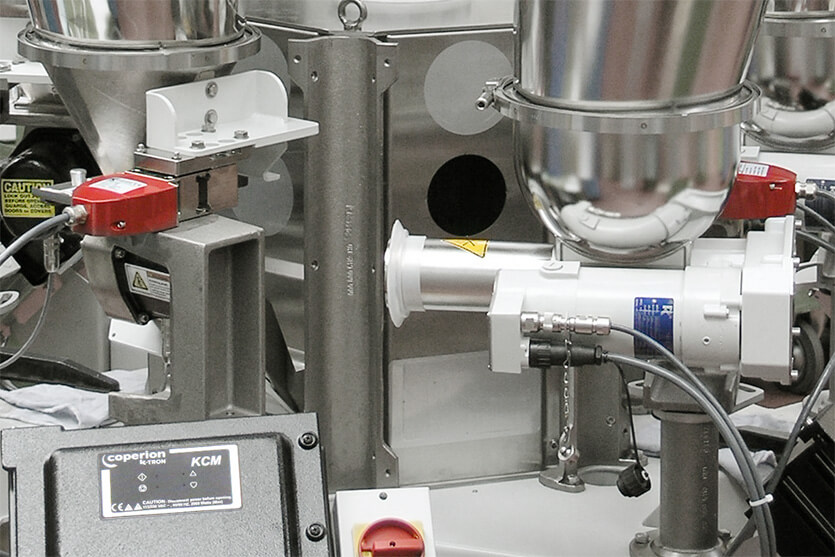

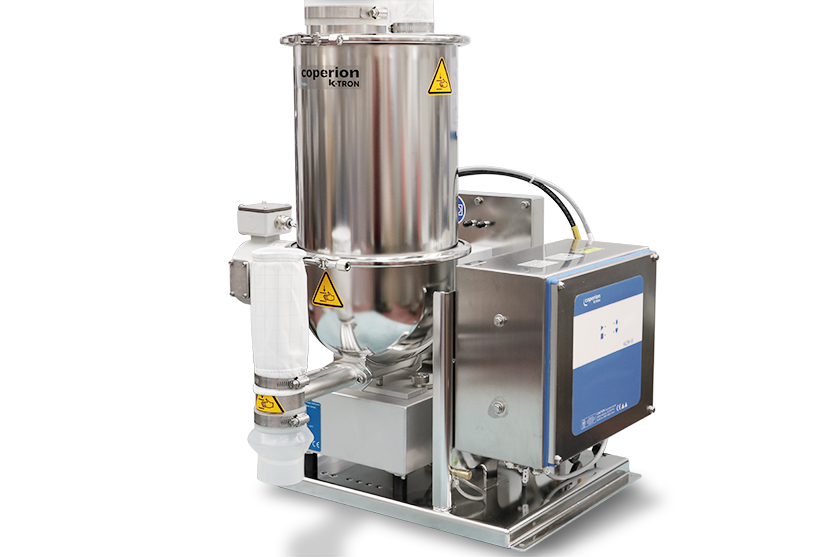

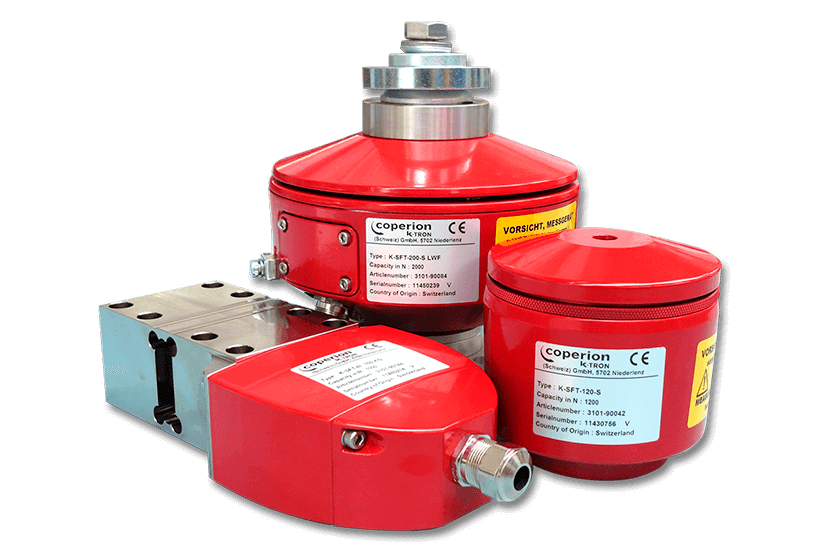

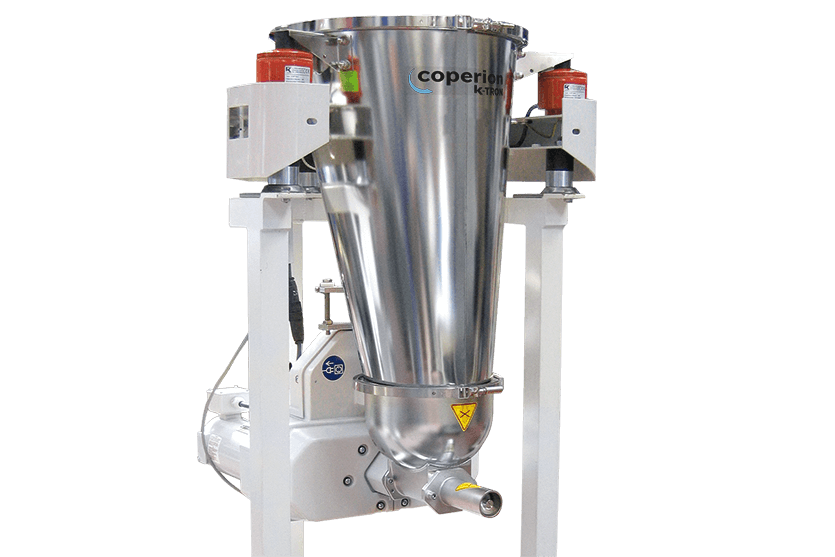

Highly accurate SFTs feature in Coperion K-Tron loss-in-weight feeders

Coperion K-Tron’s unique vibrating wire weighing technology is based on the theory that the resonance frequency of an oscillating wire depends on the wire tension produced when a load is applied. Force, when derived from an applied weight, is transferred mechanically to the wire. The resonant frequency is measured to determine the weight. In Coperion K-Tron’s patented Smart Force Transducer (SFT), the signal is directly converted into a digital weight signal by a built-in microprocessor. The signal is then communicated noise-free via RS 485 to the controller. Every SFT provides a true 4,000,000:1 weight resolution in 80 ms and comes with a 5 year warranty.

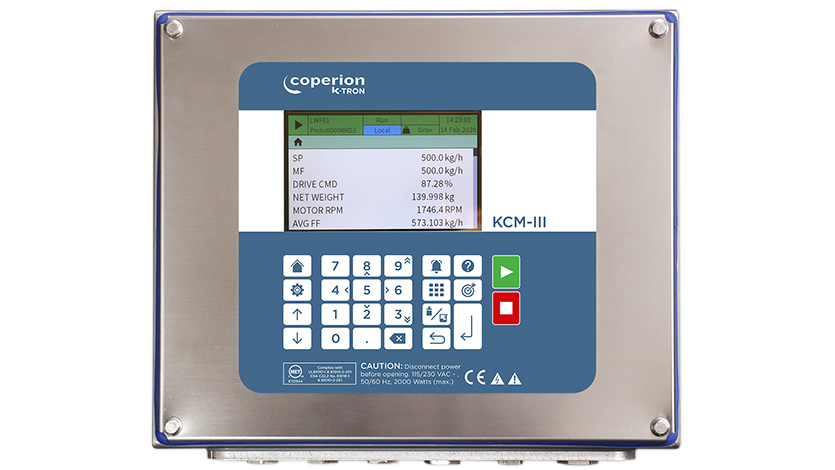

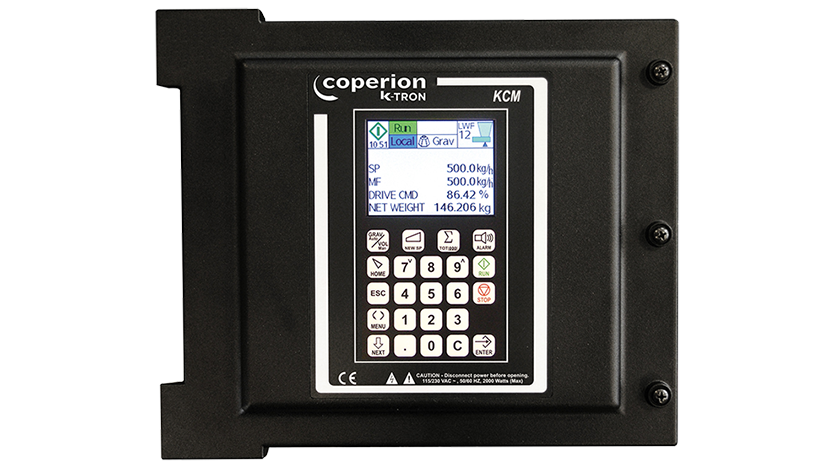

The KCM is the "Brain" of each feeder

No matter how simple or complex your feeder application may be, Coperion K-Tron has a control solution designed and priced to meet your needs.
Coperion K-Tron’s SmartConnexTM concept represents a new control environment that tightly integrates the core technologies of a feeder system. This greatly reduces the cost of installation and daily operation, makes the system easier to use and maintain, and provides an optimum level of performance. In multi-feeder applications, SmartConnex can be used to form a network of feeders using simple field wiring techniques with superior performance.

Feeders for a wide range of applications

No two process applications are the same, and Coperion K-Tron offers the widest range of material handling solutions in the industry. All volumetric feeders, loss-in-weight feeders, weigh belts, flow meters and conveying systems are offered in a variety of configurations, which can be combined to create an optimal solution for any application.

Literature Downloads

Related Topics

Finding the Right Feeding Solution

Process equipment manufacturers have developed a vast body of expertise and a wide range of feeding technology options to address the multitude of challenges that can arise for process operations involving bulk solids. Your feeder selection, and the success of your application, will be greatly influenced by the specific characteristics of the materials you must feed, the recipe precision needed for your process and the throughput required.

The flow behavior of different bulk solids can vary greatly depending on the material properties or particle geometry. No one feeder design or feeder size can handle all the different material characteristics or throughput requirements. The following short list describes the behaviors most commonly encountered and the feeding solutions that feeder equipment manufacturers such as Coperion K-Tron have developed to handle these bulk solids challenges.

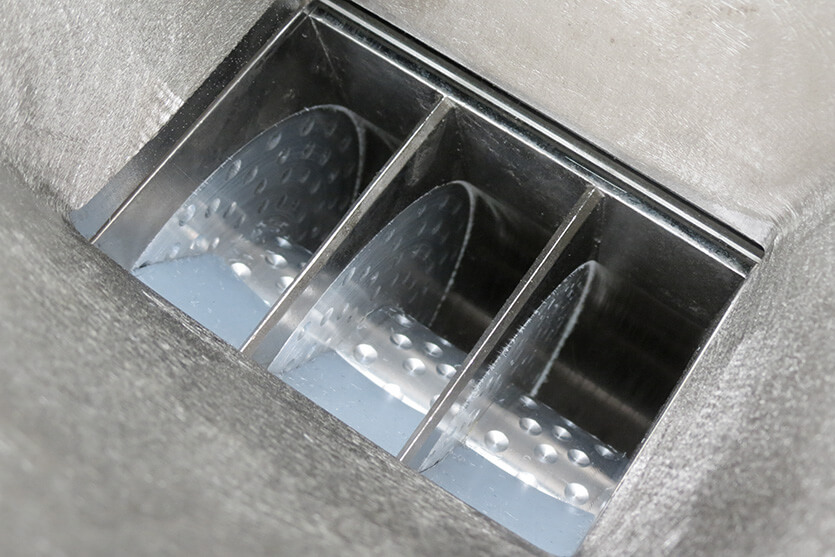

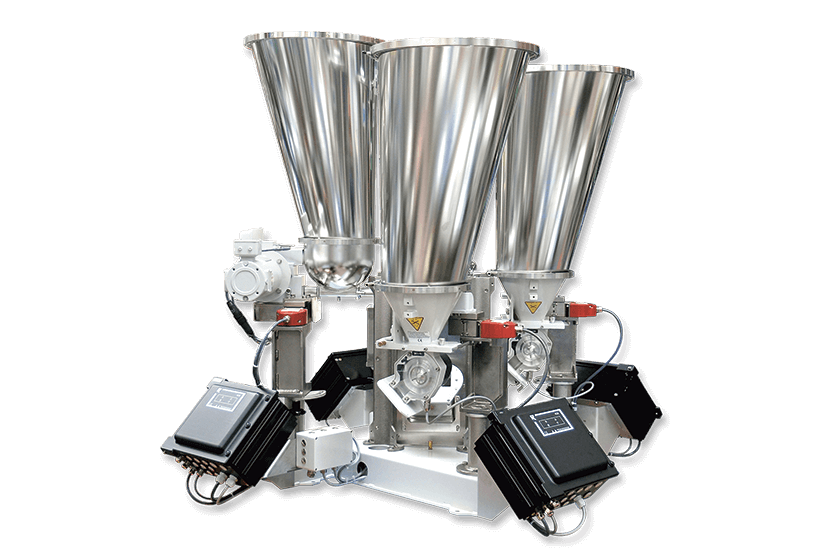

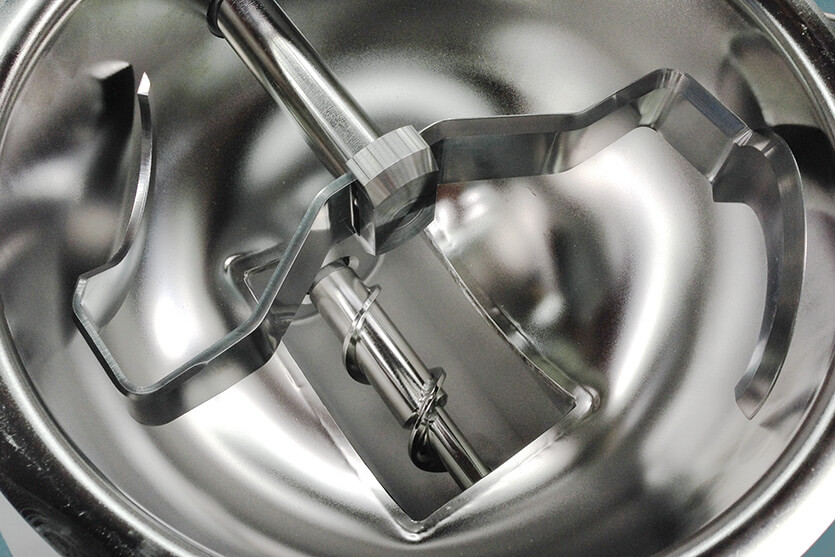

Easy-flowing materials, such as plastic pellets, granules and flakes, are most frequently metered with a single screw feeder. A variety of screw sizes and geometries are available to accommodate different material characteristics and desired feedrates. Bulk Solids Pump (BSP) feeders and vibratory feeders also provide gentle, precise feeding of free-flowing materials. BSP feeders employ a patented positive displacement action that feeds free flowing material with exceptional accuracy.

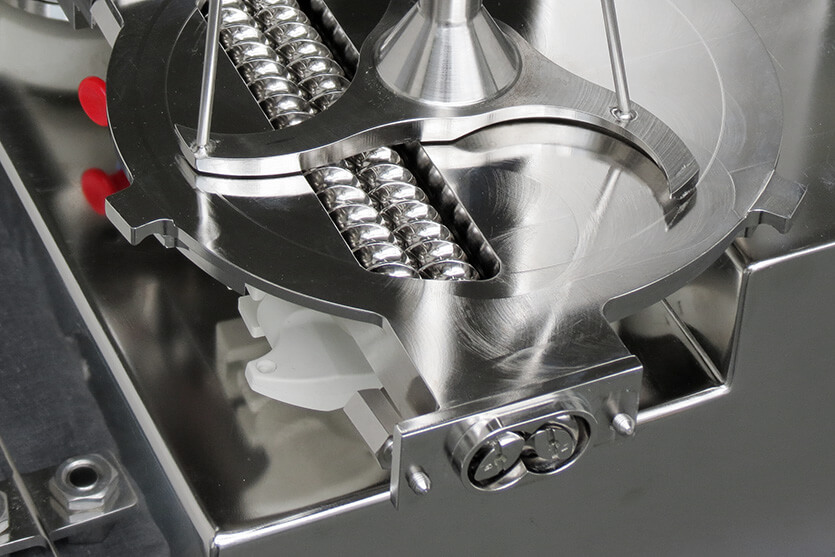

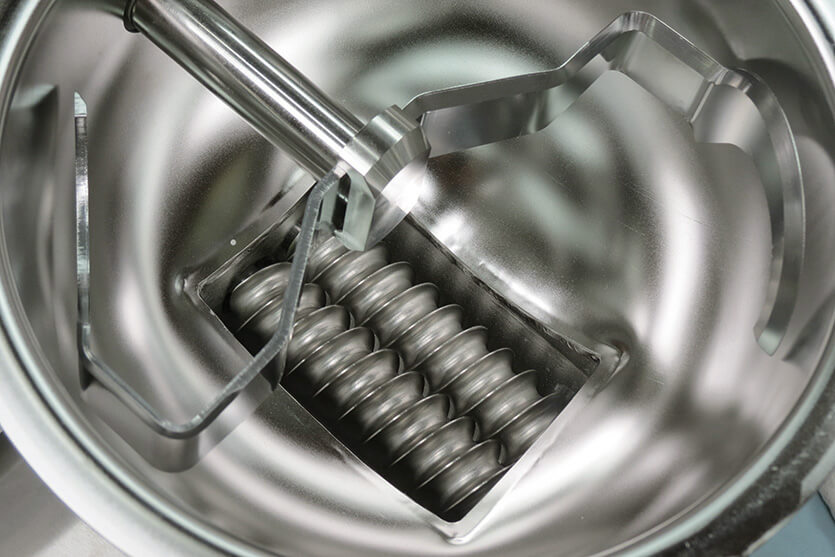

Floodable materials, including fine materials such as fumed silica, gypsum and diatomaceous earth, can behave like liquids if not properly controlled during hopper discharge and feeding. Here a feeder with interlocking twin screws is often the best choice. The intermeshing screw flights act as a valve to control material flow.

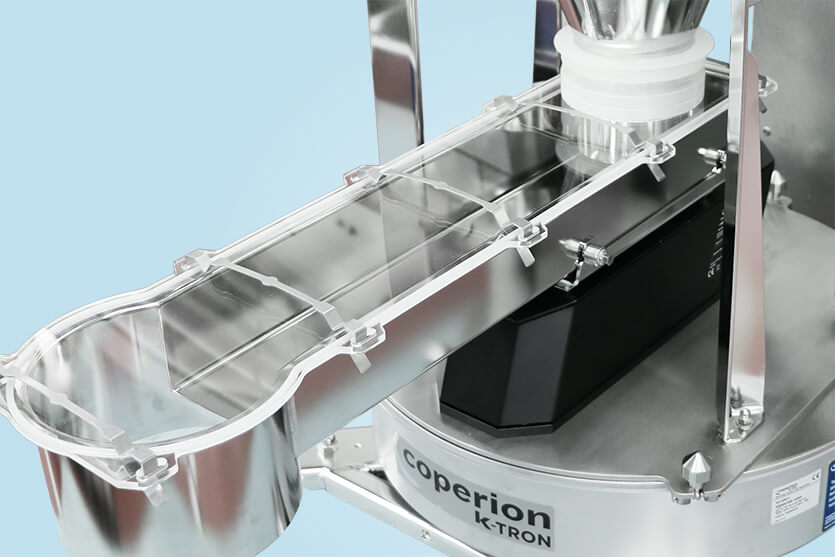

Difficult-flowing materials, such as fiberglass and rubber particles, often require special feeder designs and other flow-aid devices to enable better control of discharge during feeding. There are many different metering options, with screw feeders and vibratory feeders being the most frequent choices.

Cohesive materials, such as titanium dioxide, pigments, APIs and copper concentrates, create additional challenges during process operations, and are particularly susceptible to bridging inside hoppers and cake or accrete to the equipment surfaces. These materials are often best handled by a twin screw feeder with hopper agitation, such as Coperion K-Tron’s ActiFlow.

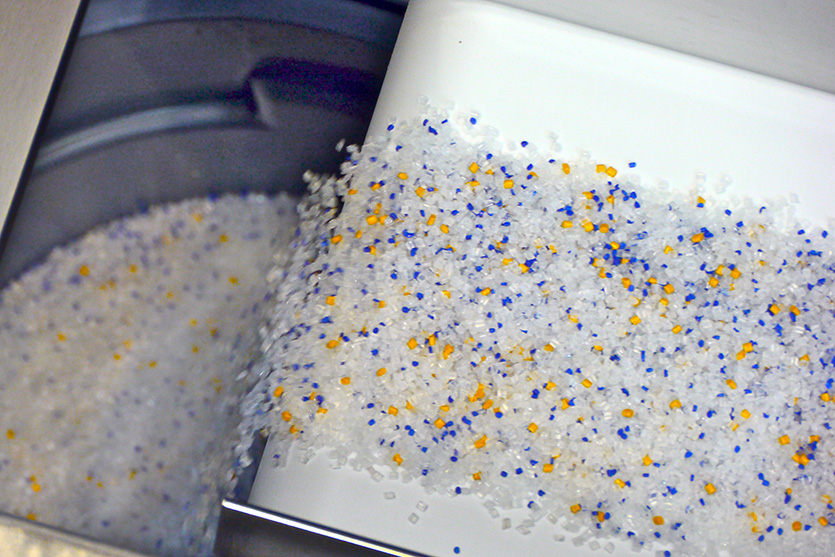

Fragile and friable materials, such as many food products and fibers must be handled carefully. Weigh belt feeders, vibratory feeders and loss-in-weight belt feeders are designed for gentle feeding of these products. Single screw feeders are also an option when configured correctly.

Without consistent, dependable feeder accuracy and repeatability for your process, the integrity of any recipe — and hence the final product — will be compromised. This will directly impact the system reliability, product yield and economic performance of the overall operation.
