Tools to Improve Quality of Color Pigment Dispersions

Masterbatch Compounding with Twin Screw Extruders

A twin screw compounding extruder is a single piece of equipment divided into distinct unit operations. Thinking of each unit operation as part of a toolbox can help determine what can be added or improved to process best-quality color masterbatches.

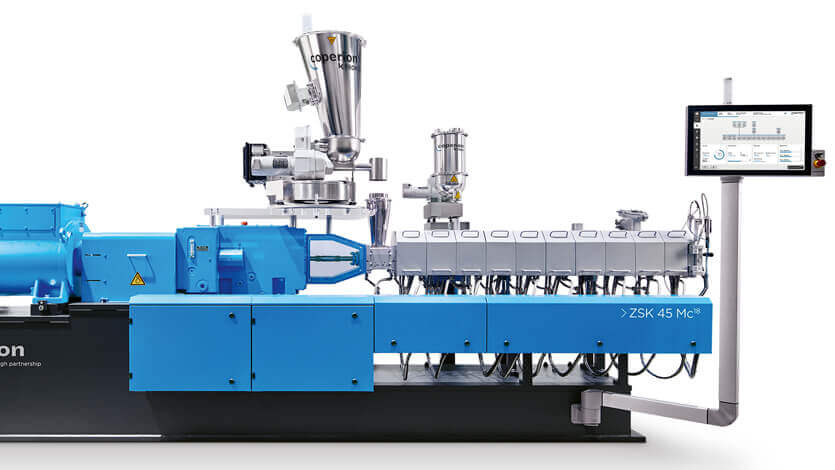

Co-rotating intermeshing twin screw extruders are exceptionally suitable for processing color-pigment masterbatches, offering benefits such as excellent dispersion at high throughput rates, high pigment loading levels, long lifetime of screw and barrel parts, and simple machine operation. That said, processing of color masterbatches comes with its own set of challenges, such as handling of raw ingredients, dispersion of pigments, and cleanliness between color changes.

This article will explore the tools that are available for producing high-quality color masterbatches, as well as techniques to overcome processing challenges while maximizing throughput and product quality.

A twin screw extruder can be considered a “toolbox” providing the operator or process engineer with a highly flexible variety of parts that can be modified and/or moved around to accommodate a specific compounding task. Producing high-quality pigment dispersions is widely proven on twin screw extruders, but not every pigment behaves and processes the same way. The way pigments are handled and how they are treated inside the twin screw extruder is crucial to the performance of the end product.

Firstly, twin screw extruders, even though considered as one piece of equipment, include a dimension of separate unit operations. To understand how to accomplish the best-performing final product, a closer look into each unit operation of the twin screw extruder is crucial.

This article will focus primarily on the split-feed method of masterbatch compounding instead of the premix method, though both are acceptable ways of producing color pigment masterbatches.

Unit Operation: Upstream Feeding

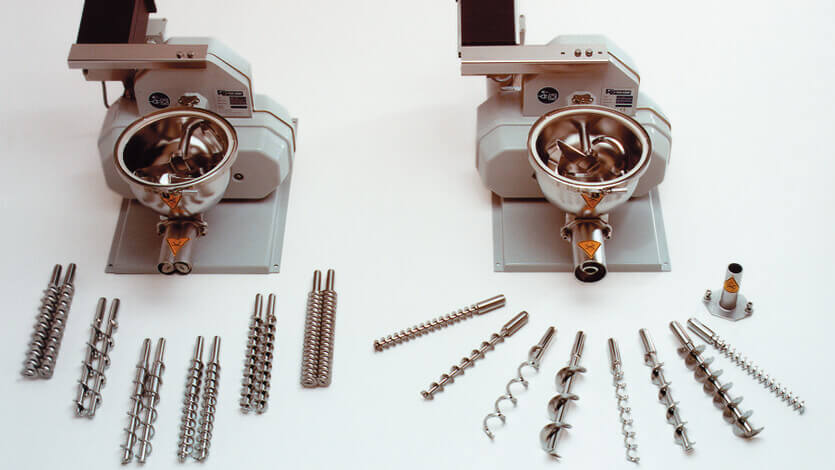

First and foremost, it is important to understand the raw-material feedstock. The choice of feeders – such as twin screw feeders, single screw feeders, etc. –depends on the behavior of the feedstock. Once feeders are appropriately chosen for each raw material, the feed intake of this material into the twin screw extruder can be the next challenge. Depending on the feedstock, fluidization and aeration of the material can occur before it actually gets fed into the machine.

Positioning of the feeders above the twin screw extruder plays a very important role to minimize fluidization and aeration of the feedstock. A lot of air is entrained together with the powder (not so much with pellets), which needs a place to escape. If there are no filter socks or a central aspiration system connected to the feeding system, then gas escaping from the extruder will impede the feed intake of the feedstock.

Regarding feedstock aeration, the positioning of the feeder height above the extruder is also crucial. Once the feedstock enters a feeder, there is a chance for the powder to compact a bit, increasing its bulk density. As the feeder starts feeding the material, depending on the height above the extruder, the feedstock will aerate, which in turn will decrease the bulk density, causing problems in feed intake.

As a rule of thumb, normally no more than 15% of a color pigment powder should enter the main feed of the twin screw extruder, in order to prevent feed intake problems. However, if there is a pellet masterbatch form of the color pigment already available, then feed-intake issues will not be encountered.

For color pigment powder loadings higher than 20% and anywhere up to 80%, split feeding between the main feed and side feeders is highly recommended, where multiple side feeders can be positioned downstream to add the color pigment.

Unit Operation: Melting

Melting polymer within the twin screw extruder is influenced by a number of factors, including external heating, internal friction and/or the heat transfer of the polymer melt. A twin screw extruder is set up with a distinct number of zones that include heating and cooling of the internal process, where energy is either absorbed into or removed from the system. Of course, as extruder size increases, the effect of external heating is reduced due to the decreasing surface-to-volume ratio.

Another influence is the internal friction that occurs inside the twin scew extruder between polymer pellets or powder particles or between the material and the screw elements. Friction and shear stress occur in the narrow gaps of kneading blocks, for example. This is totally influenced by the type of screw profile installed and by the throughput rate and extruder screw speed. Heat transfer in the polymer melt helps encapsulate any unmelted polymer to aid in creating a full melt.

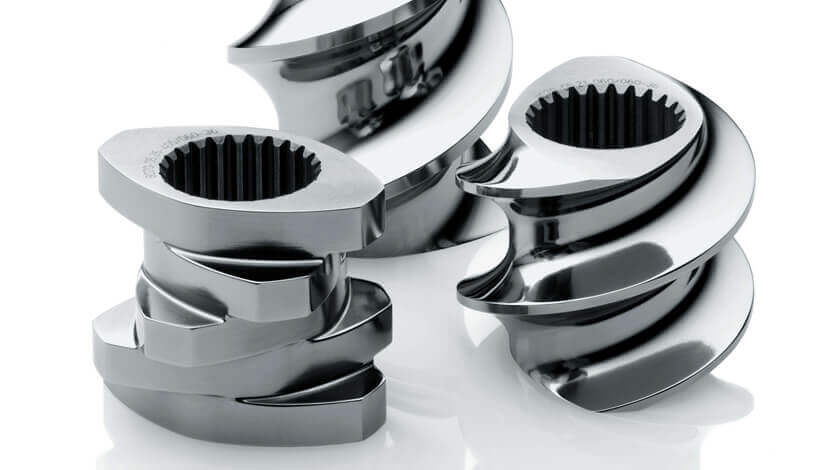

The design of the kneading and mixing zone is entirely determined by the type of polymer being processed but can include a variety of kneading elements. These can include three-flighted and two-flighted 45° (conveying) kneading elements, two-flighted 90° (neutral) kneading elements, and/or left-handed (retaining) kneading or conveying elements.

A combination of these elements provides the necessary amount of mechanical energy and residence time to efficiently melt and homogenize a polymer before it travels further downstream. The left-handed (retaining) elements pressurize the melt inside the twin screw extruder. It is important to design this section to not over-shear and degrade the polymer. It is also critical to note that once the material exits the melting section, it should be completely molten to provide the proper wet-out of the color pigment being introduced downstream.

Unit Operation: Split Feeding

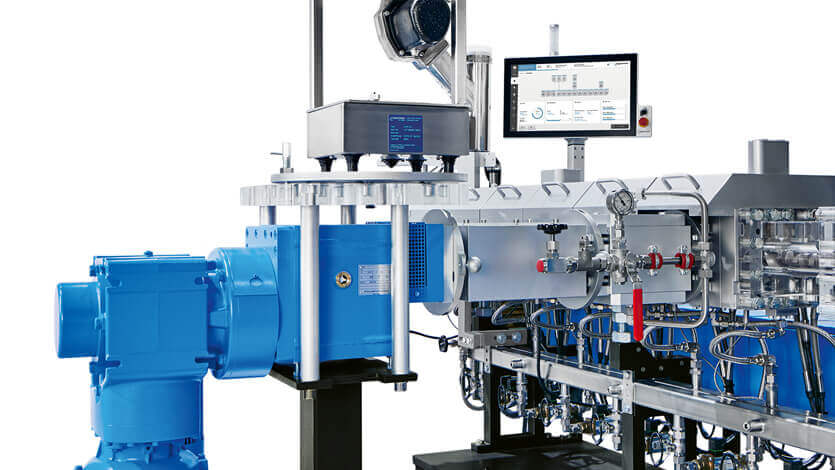

It was mentioned earlier that depending on the loading of a color pigment in a formulation, there is a chance to feed some of the color pigment into the main feed of the twin scew extruder up to 15% or so, depending on its particle shape and size. But when considering high loadings of color pigments (up to 80%), there is a chance of “split-feeding” the material between the main feed of the twin screw extruder and a side feeder (sometimes multiple side feeders) positioned downstream. The ratios of split feeding depend on the type of material and the loading level; but in the end, it is a balancing act to find what exactly works best.

Unit Operation: Downstream Mixing/Venting

The melting section is a very important tool in producing quality color pigment dispersions on the twin screw extruder. The same goes for the downstream mixing section. Once the color pigment is efficiently introduced into the twin screw extruder and proper wet-out of the particles with the polymer melt takes place, the design of the downstream mixing section(s) is crucial to distributing and dispersing the color pigment. It was mentioned earlier that air does get entrained with the pigment powder when entering a downstream side feeder, where some of the air is back-vented through an upstream vent included on the side-feeder barrel itself.

However, most of that entrained air actually makes it into the downstream mixing section, where if it is not designed correctly, it could cause the entrained air to travel backward and back into the side feeder, impeding the flow of material. The purpose of the downstream mixing section is to wet out the pigment with the melt and also to convey the entrained air downstream where an atmospheric vent can be positioned to let that air escape.

Unit Operation: Devolatilization

Now that the product has gone through most of the upstream unit operations, the material is coming very close to exiting the twin screw extruder and entering the downstream equipment. One area that is sometimes overlooked is the devolatilization (or degassing) section of the machine. This is an important unit operation because when the material undergoes vacuum application, air bubbles and/or volatiles are stripped from the polymer melt, providing a nonporous and dense pellet.

If porosity were to be present in the final pellets, it can affect the strength and durability of the final molded part. The twin screw extruder provides a rather easy way to apply vacuum, which consists of an open (or vent) barrel with a vacuum dome attached to a knockout pot (or condenser) and a vacuum pump.

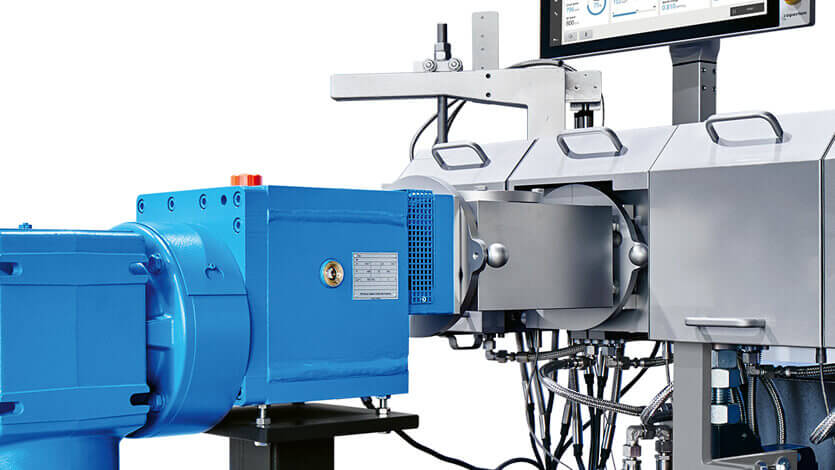

There are cases where no matter what level of vacuum is applied or what extruder screw speed is being used, material will still escape the vacuum vent port, plugging the vent and preventing adequate devolatil­ization. In this case, a piece of equipment sometimes referred to as a side degassing unit (ZS-EG) will be used to help keep material inside the twin screw extruder while letting gases escape for proper devolatilization.

Unit Operation: Pressure Buildup & Pelletizing

Not much time is normally spent in con­sidering the design of the pressure buildup section of the twin screw extruder. Polymer flow in this section is a combination of drag flow toward the screw tips due to the rotation of the screws and a pressure flow upstream, away from the discharge of the twin screw extruder. Be mindful of where vacuum ports are positioned, as too much pressure buildup will cause devolatilization issues.

Typically, pelletizing of color masterbatches will involve either strand or underwater pelletizing. Higher loadings of color pigments approaching 80% could cause strands to be very brittle, in which case underwater pelletizing would be the better choice, but this all depends on the type of pigment being used.

This article was published with the permission of Plastics Technology / Gardner Business Media, Inc. All rights reserved.
