Orifice Slide Gate

Want to find out more about this product?

Get in touch

Coperion K-Tron

Controls gravity flow discharge

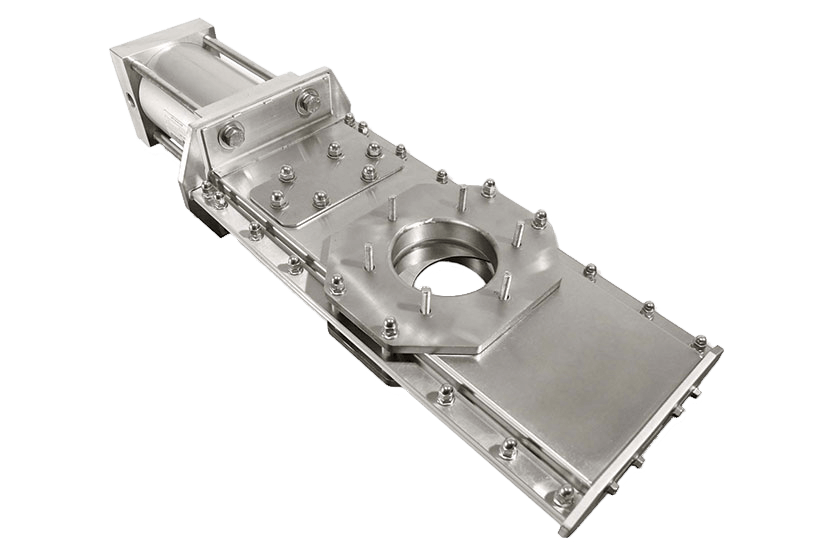

Orifice slide gates are used to control gravity flow discharge from storage bins and hoppers. In the open position, the gate’s blade is completely removed from the control opening, making a resistance-free passage for the material stream. Orifice gates are also well-suited for controlling the material lines in vacuum and pressure, dilute-phase conveying applications.

Design Features

  • Special stainless steel service inlets used when the gate is used on hard or abrasive materials
  • Designed for applications with temperatures up to 82°C [180°F]
  • 50 - 355 mm sizes [2 - 14 in]
  • Aluminum frame with stainless steel-lined orifice and gate blade, and nylon pressure plate gate seals
  • Air-operated actuator
  • 24 VDC power solenoid valve
  • SPDT position proof switches
  • IP65, NEMA 4 enclosures
  • CE compliant, ATEX certification available

Related Industries

  • Plastics
  • Chemicals
  • Food & Pet Food
  • Minerals
  • Nonwovens

Benefits

  • Unobstructed opening creating a positive material shut-off
  • Handles multiple materials including powders, granulars and pellets
  • Serviceable while in-line for minimizing downtime
  • Mechanically self-cleans
  • Closes through standing column of material
  • For food grade and non-food grade applications
