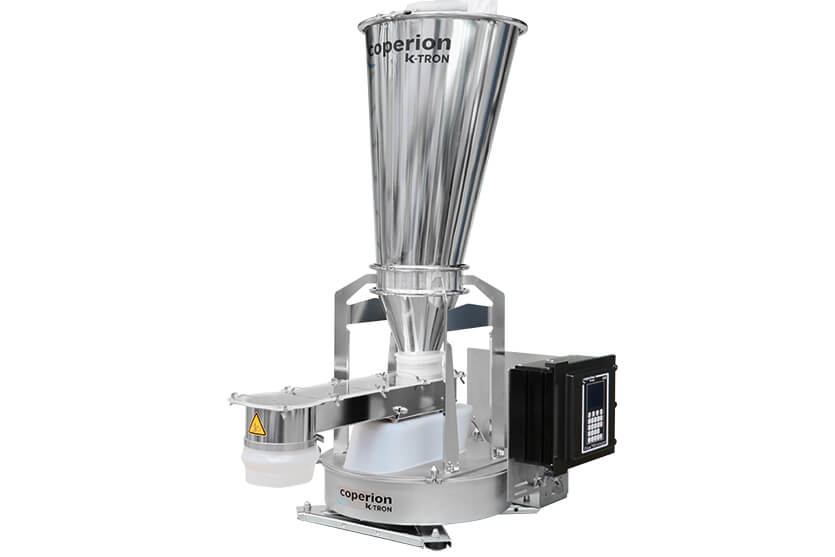

Vibratory Feeders

Want to find out more about this product?

Get in touch
Coperion K-Tron

Gentle gravimetric feeding of fragile, friable, abrasive or fibrous material

Where uniform discharge is critical, especially at very low rates, our vibratory feeders provide excellent gravimetric feeding of very free flowing bulk materials. Vibratory feeders have proven best for feeding fragile ingredients and problem materials such as fibers, glass fibers and also abrasive materials such as rough-grained powders and granules.

Benefits & Features

  • Ideal for handling fragile materials
  • Best solution for feeding fibrous material
  • Vibratory trays in three sizes can be combined with various hopper sizes
  • Vibratory trays available in two designs and various sizes, to be combined with various hopper sizes
  • Three sizes of vibratory drives to choose from (KV1, KV2, KV3)
  • Weighing module isolates vibration amplitude for high accuracy loss-in-weight feeding
  • Patented 3-loop control concept
  • Maintenance free: No mechanical parts and joints that could wear

Related Industries

  • Plastics
  • Chemicals
  • Food & Pet Food
  • Pharmaceutical
  • Minerals
  • Nonwovens

Design Features

A_vibratory_t

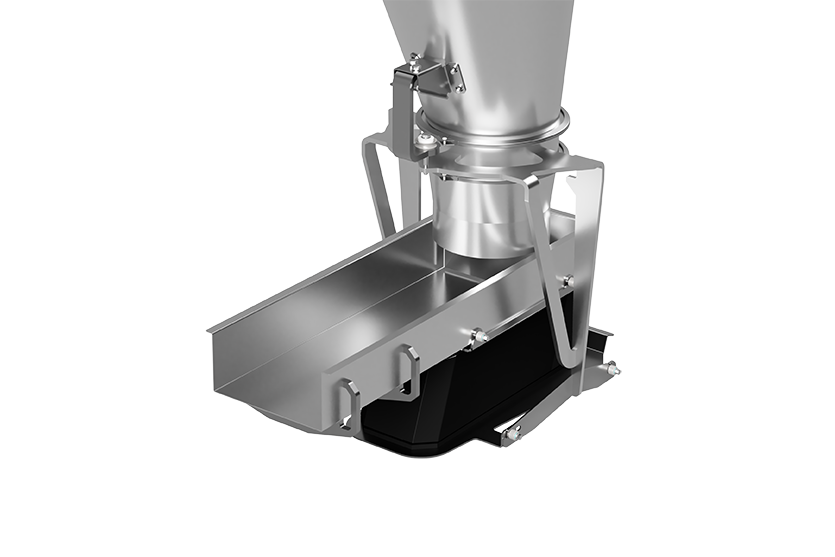

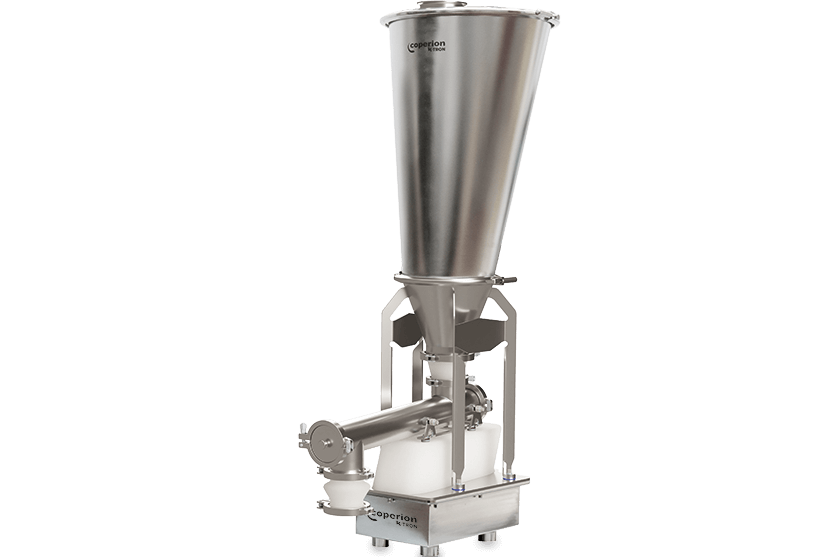

Trays are available in 2 shapes and various sizes

Vibratory trays are available in two designs and various sizes and can be combined with various hopper sizes to cover a wide range of materials and feed rates.

Rectangular trays are appropriate for most materials and the "alpenhorn" style trays are ideal for fibers.

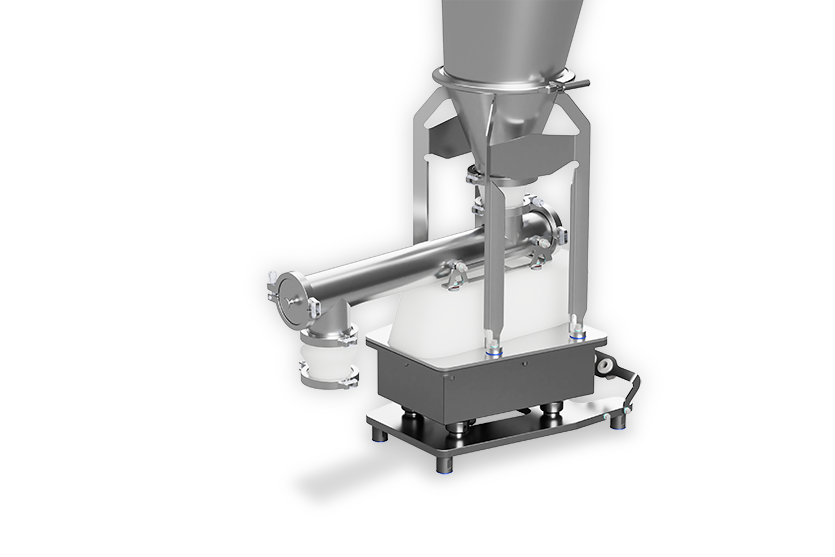

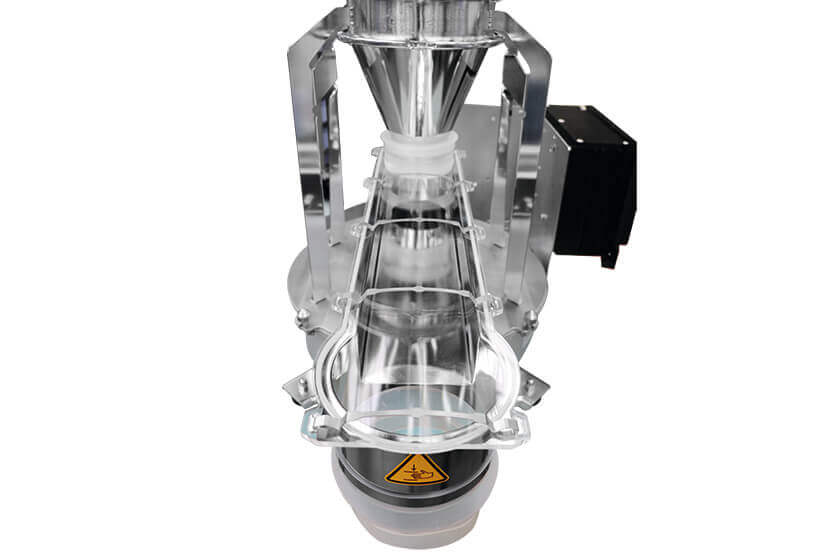

Coperon K-Tron Vibratory feeder fiber equalizer
The fiber equalizer is available for KV2 and KV3 models

The fiber equalizer sports the following features:

  • Accurate and reliable feeding of glass fibers (or other fibers) with lengths of 3 to 6 mm
  • Totally enclosed channel, i.e. no fiber contamination of surroundings
  • The efficient function of the equalizer makes it possible to keep the length of the vibrating tray very short
  • The fiber equalizer is adjustable and avilable in different configurations to match feed rate and material behavior

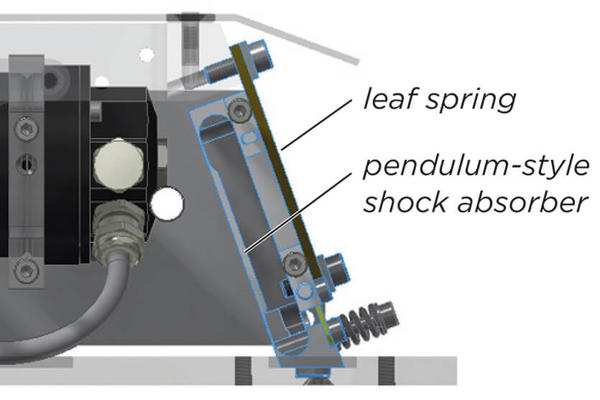

Vibratory Feeder, vibratory drive

The Coperion K-Tron vibratory drive with the patented 3-loop concept is part of the control system and has been developed especially for use with these feeders. One control loop maintains tray resonance, a second loop varies amplitude to control rate, and a third loop reflects the mechanical dynamics associated with the unique combination of material and feeder to trim output to the highest attainable accuracy.

Available Models

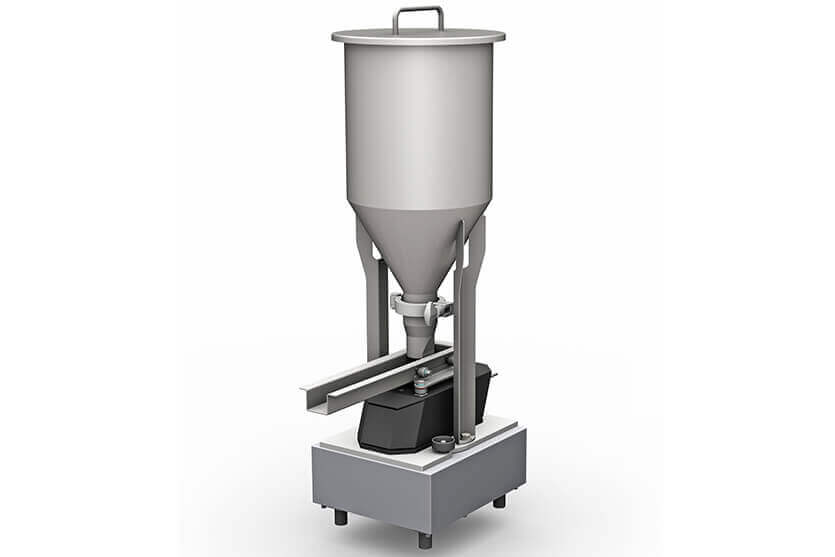

Coperion K-Tron KV1 Vibratory Feeder on SFS platform scale
KV1 Vibratory Feeder on SFS platform scale

Vibratory feeding module consisting of a vibrator (KV1), a closed feeder tray and a hopper.

Feed Rates

Below table shows feeding capacities with a standard tray 30/30 mm.

Density of bulk material

PCF 31 47 62
kg/dm3 0.50 0.75 1.00
Feed rate slide valve open

kg/h
[lb/h]
1-125
[2.2-275]
1.5-185
[3.3-407]
2-250
[4.4-550]
Feed rate slide valve partially closed (15 mm)

kg/h
[lb/h]
0.1-44
[0.22-96.8]
0.15-66
[0.33-145.2]
0.2-85
[0.44-187]

Product contact parts are manufactured of stainless steel.

Hazardous location options (ATEX, NEC) available.

Consult Product Specification Sheet for more details.

Download Example Product Specification Sheets

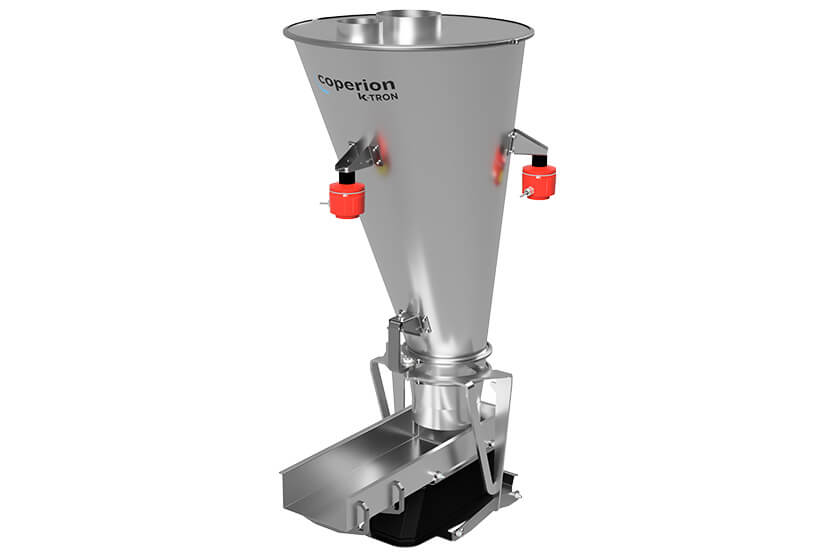

Coperion K-Tron KV2 Vibratory Feeder
K-ML-KV2 Vibratory Feeder on 3-point SFT load cell system

Vibratory feeding module consisting of a vibrator (KV2), a closed feeder tray and a hopper.

Feed Rates

Feed rate range with controller settings is 1:20. Adjustments to the drive can increase the range to 1:30.

Configuration


without flap with flap (fully open) with flap (min. open)
Tray

60x40mm
[2.4x1.6in]
dm3/h
[ft3/h]
9-900
[0.32-31.77]
3.5-350
[0.12-12.36]
2-200
[0.07-7.06]
120x60mm
[4.7x2.4in]
dm3/h
[ft3/h]
25-2500
[0.88-88.25]
18-1800
[0.64-63.54]
10-1000
[0.35-35.3]

Product contact parts are manufactured of stainless steel.

Hazardous location options (ATEX, NEC) available.

Consult Product Specification Sheet for more details.

Download Example Product Specification Sheets

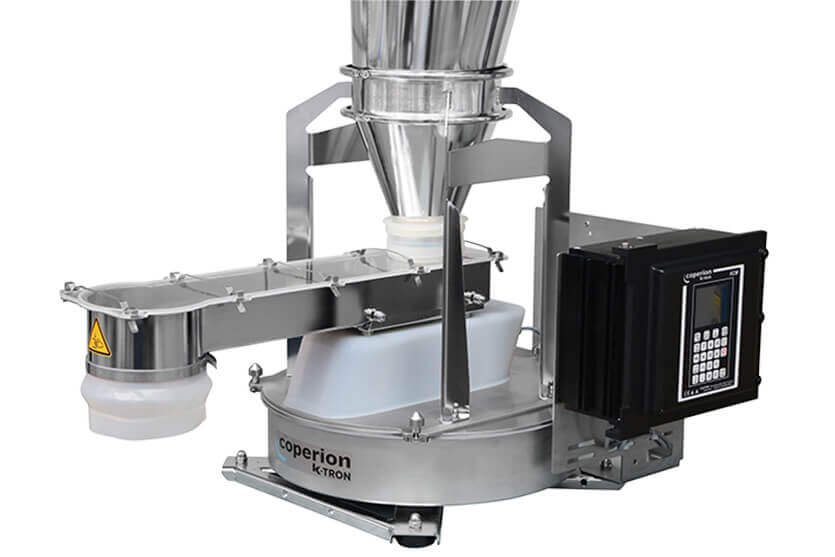

Coperion K-Tron KV2 Vibratory Feeder, special design for fibrous material
K-ML-D5-KV2-F Vibratory Feeder on D5 platform scale, with fiber equalizer

Vibratory feeding module consisting of a vibrator (KV2), a closed feeder tray and a hopper. Especially suited for the feeding of glass fibers with lengths of 3 to 6 mm. Implements a vibratory tray with fiber equalizer for continuous distribution of the fiber flow.

Feed Rates

Feed rate range with controller settings is 1:20. Adjustments to the drive can increase the range to 1:30.

Based on D5 platform scale:

Bulk material Bulk density Feed rate range
Glass fibers 3 - 6 mm [1/8-1/4in] 0.5 - 0.6 kg/dm3
[31 - 37 lb/ft3]
10 - 350 kg/h
[22 - 770 lb/h]

Based on 3-point SFT load cell system:

Bulk material Bulk density Feed rate range
Glass fibers 3 - 6 mm [1/8-1/4in] 0.5 - 0.8 kg/dm3
[31 - 50 lb/ft3]
10 - 450 kg/h
[22 - 990 lb/h]

Product contact parts are manufactured of stainless steel.

Hazardous location options (ATEX, NEC) available.

Consult Product Specification Sheet for more details.

Download Example Product Specification Sheets

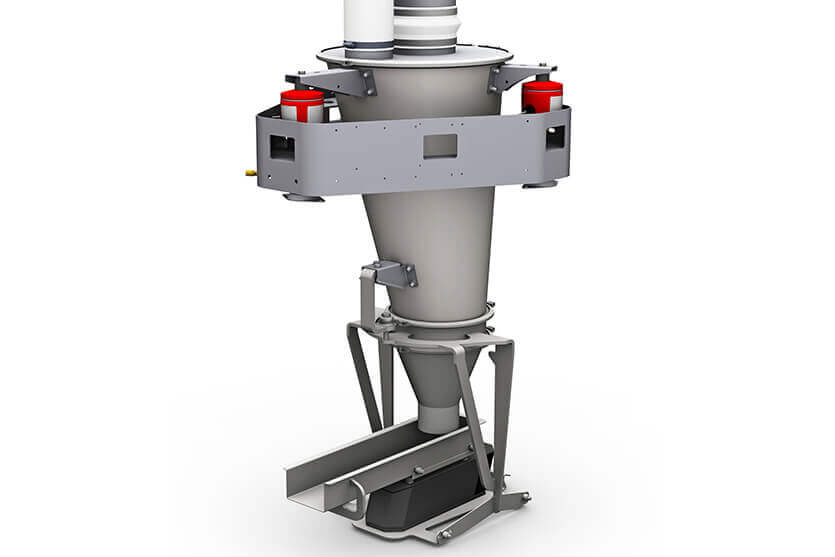

Coperion K-Tron KV3 Vibratory Feeder on SFT load cells
K-ML-KV3 Vibratory Feeder on 3-point SFT load cell system

Vibratory feeding module consisting of a vibrator (KV3), a closed feeder tray and a hopper.

Feed Rates

Feed rate range with controller settings is 1:20. Adjustments to the drive can increase the range to 1:30.

Configuration


without flap with flap (fully open) with flap (15mm open) with flap (20mm open=
Tray

165x90mm
[6.5x3.5in]
dm3/h
[ft3/h]
50-6000
[6.5x3.5in]
35-5000
[1.2-177]
25-1250
[0.9-44.1]
--
--
220x90mm
[8.7x3.5in]
dm3/h
[ft3/h]
50-8500
[1.8-300]
50-5000
(1.8-177)
--
--
10-1000
(0.35-35.3)

Product contact parts are manufactured of stainless steel.

Hazardous location options (ATEX, NEC) available.

Consult Product Specification Sheet for more details.

Download Example Product Specification Sheets

Vibratory feeding module consisting of a vibrator (KV3), a closed feeder tray and a hopper. Especially suited for the feeding of glass fibers with lengths of 3 to 6 mm. Implements a vibratory tray with fiber equalizer for continuous distribution of the fiber flow.

Feed Rates

Feed rate range with controller settings is 1:20. Adjustments to the drive can increase the range to 1:30.

Bulk material Bulk density Feed rate range
Glass fibers 3 - 6 mm [1/8-1/4in] 0.5 - 0.8 kg/dm3
[31 - 50 lb/ft3]
50-1500 kg/h
[110-3300 lb/h]

Product contact parts are manufactured of stainless steel.

Hazardous location options (ATEX, NEC) available.

Consult Product Specification Sheet for more details.

Download Example Product Specification Sheets
